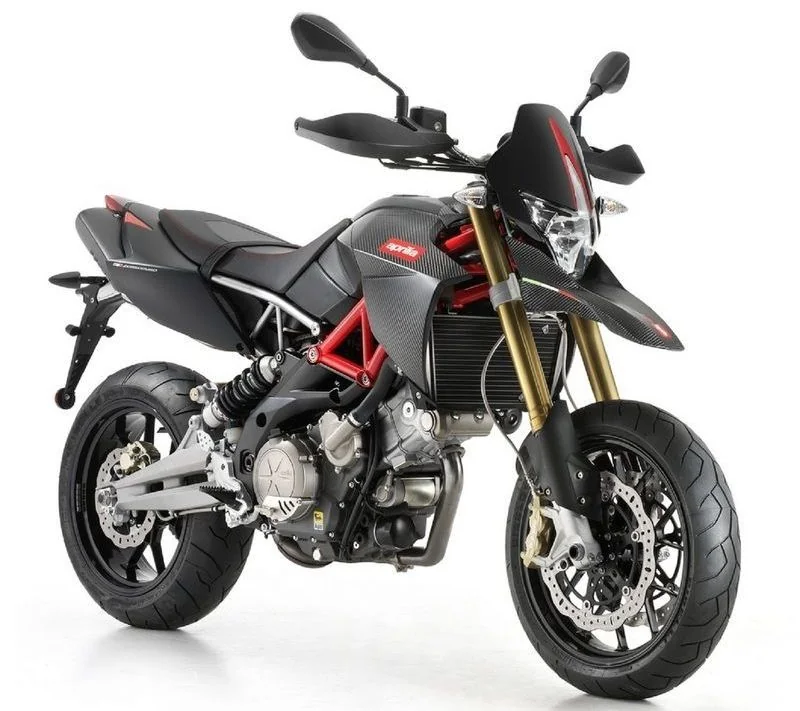

Aprilia Dorsoduro 750 Factory 2013
Complete specifications and details for the 2013 Aprilia Dorsoduro 750 Factory. This comprehensive guide includes engine specifications, dimensions, features, and performance data.
Basic Information
| Make | Aprilia |
|---|---|
| Model | Dorsoduro 750 Factory |
| Year | 2013 |
| Category | Super motard |
Chassis, Suspension & Brakes
| Frame Type | Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame. |
|---|---|
| Front Brakes | Double disc. Bremo. Wave stainless steel floating disc. |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | 43 mm upside-down fork. 160 mm wheel travel. |
| Front Tyre | 120/70-17. |
| Front Wheel Travel | 160 mm (6.3 inches) |
| Rake | 26.0° |
| Rear Brakes | Single disc. Bremo. Wave stainless steel floating disc. |
| Rear Brakes Diameter | 240 mm (9.4 inches) |
| Rear Suspension | Aluminium alloy swingarm Gas-operated shock absorber with piggy back, with adjustable spring preload and compression and rebound damping. Wheel travel 160 mm |
| Rear Tyre | 180/55-17. |
| Rear Wheel Travel | 160 mm (6.3 inches) |
| Trail | 108 mm (4.3 inches) |
| Wheels | Aluminium alloy. Front: 3.50 x 17´. Rear: 6.00 x 17´. |
Other Specifications
| Color Options | Nero Vulcano (black) |
|---|---|
| Starter | Electric |
Engine & Transmission
| Displacement | 749.90 ccm (45.76 cubic inches) |
|---|---|
| Engine Type | Aprilia V90 longitudinal 90° V twin. Ride-by-Wire System. |
| Engine Details | V2, four-stroke |
| Power | 90.25 HP (65.9 kW)) @ 8750 RPM |
| Torque | 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 4500 RPM |
| Compression | 11.0:1 |
| Bore X Stroke | 92.0 x 56.4 mm (3.6 x 2.2 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control. |
| Ignition | Digital electronic, integrated in the fuel injection system. |
| Lubrication System | Wet sump. |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Hydraulically operated multi-plate wet clutch. |
| Driveline | Primary drive: Spur gears. Transmission ratio 38/71 (1.87). Final drive: Chain. Transmission ratio 16/46. |
| Exhaust System | Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe. |
Dimensions & Capacities
| Dry Weight | 185.0 kg (407.9 pounds) |
|---|---|
| Fuel Capacity | 12.00 litres (3.17 gallons) |
| Overall Height | 1,185 mm (46.7 inches) |
| Overall Length | 2,216 mm (87.2 inches) |
| Overall Width | 905 mm (35.6 inches) |
| Power Weight Ratio | 0.4878 HP/kg |
| Seat Height | 870 mm (34.3 inches) If adjustable, lowest setting. |
