Aeon Overland 200 T3
Key specifications
Overview

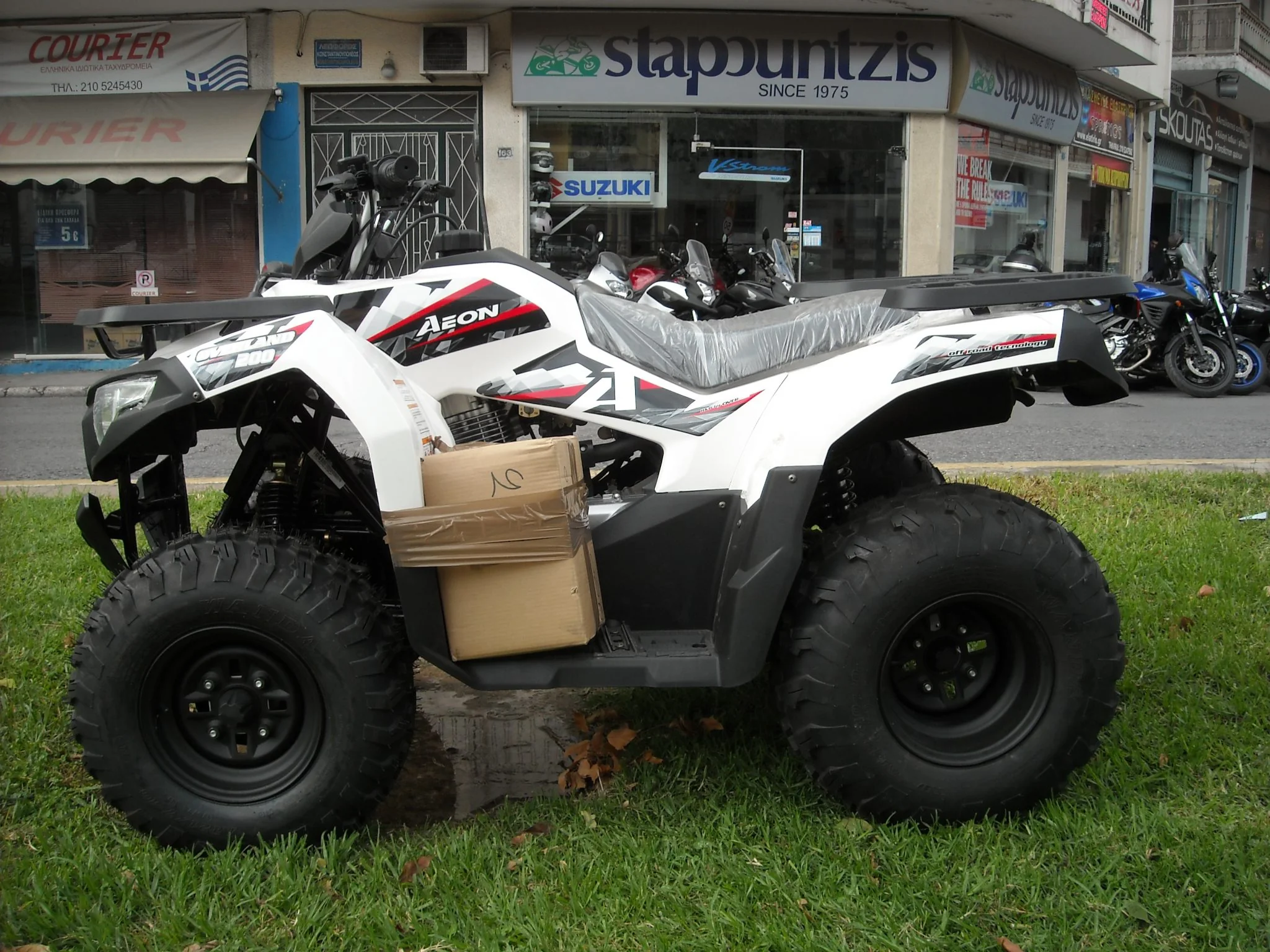

Introducing the 2018 Aeon Overland 200 T3, an all-terrain vehicle meticulously crafted for those who crave adventure beyond the asphalt. Positioned within the competitive ATV market, this model stands out for its blend of reliability, performance, and accessibility. Whether you're navigating rocky trails or cruising through wooded paths, the Overland 200 T3 offers a practical yet exciting solution for both novice riders and seasoned adventurers alike. With its compact design and robust features, this ATV is ready to take on whatever challenges lie ahead. At the heart of the Overland 200 T3 is its spirited 176cc single-cylinder, four-stroke engine, delivering a commendable 13.14 horsepower at 8000 RPM. This powertrain is engineered for versatility, providing the torque needed to tackle inclines and uneven terrain with ease, thanks to its 13.80 Nm of torque at 6000 RPM. The air-cooled system keeps the engine performing efficiently, while the chain final drive ensures smooth power delivery. Riders will appreciate the balance between power and control, making each ride feel confident and engaging. The Overland 200 T3 is equipped with advanced features that enhance both safety and comfort. The double wishbone front suspension and swing arm rear suspension work in harmony to absorb shocks, allowing for a smoother ride over rough terrain. Stopping power is delivered through reliable hydraulic brakes, with double discs at the front and a single disc at the rear, ensuring quick and responsive braking. With a generous 9-litre fuel tank and a seat height of 800 mm, the Overland is designed for extended adventures without sacrificing comfort. The electric starter adds to the convenience, while the sleek white color option gives it a modern aesthetic appeal. Overall, the 2018 Aeon Overland 200 T3 is a commendable choice for ATV enthusiasts seeking a reliable, fun, and approachable vehicle for their off-road excursions.
Pros
- Powerful Engine Performance: The 176cc engine provides a lively ride with sufficient torque for varied terrains.
- Comfortable Suspension: The double wishbone front and swing arm rear suspension offer excellent shock absorption, enhancing rider comfort.
- Convenient Features: The electric starter and hydraulic brakes add to the ease of use and safety, making it suitable for riders of all levels.
Cons
- Weight Consideration: At 195 kg, the Overland 200 T3 may feel heavy for some riders, especially in more technical off-road situations.
- Limited Power for High-Speed Applications: While sufficient for trails, the engine may lack the horsepower for those looking to push the limits on open terrain.
- Basic Color Options: The availability of a single color may not appeal to riders looking for more customization in aesthetics.
Technical details
Source specification data
- Make
- Aeon
- Model
- Overland 200 T3
- Category
- ATV
- Starter
- Electric
- Color Options
- White
- Power
- 13.14 HP (9.6 kW)) @ 8000 RPM
- Torque
- 13.80 Nm (1.4 kgf-m or 10.2 ft.lbs) @ 6000 RPM
- Ignition
- C.D.I.
- Bore X Stroke
- 62.0 x 58.4 mm (2.4 x 2.3 inches)
- Compression
- 9.2:1
- Displacement
- 176.00 ccm (10.74 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump, pressurized
- Transmission Type Final Drive
- Chain
- Dry Weight
- 195.0 kg (429.9 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.00 litres (2.38 gallons)
- Overall Width
- 1,030 mm (40.6 inches)
- Overall Height
- 1,115 mm (43.9 inches)
- Power Weight Ratio
- 0.0674 HP/kg
- Rear Tyre
- 20/10-10
- Front Tyre
- 21/7-10
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Double disc. Hydraulic.
- Rear Suspension
- Swing Arm
- Front Suspension
- Double wishbone
