2017Super Moto

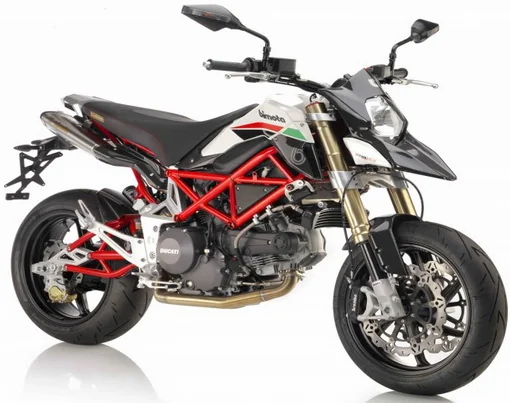

Bimota DB10 rd
Key specifications
Engine
1078 cc
Power
98 HP
Torque
105 Nm
Weight
168 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Rear brakes
Single disc. 2-pistons,
Technical details
Source specification data
- Make
- Bimota
- Model
- DB10 rd
- Category
- Super motard
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Red/white/green
- Power
- 98.00 HP (71.5 kW)) @ 7750 RPM
- Clutch
- Dry multidisc
- Torque
- 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM
- Gearbox
- 6-speed
- Ignition
- Walbro by Bimota
- Top Speed
- 220.0 km/h (136.7 mph)
- Engine Type
- Ducati 1100DS engine. L-twin.
- Fuel System
- Injection
- .
- Magneti Marelli
- -45mm throttle body
- Bore X Stroke
- 98.0 x 71.5 mm (3.9 x 2.8 inches)
- Compression
- 10.5:1
- Displacement
- 1078.00 ccm (65.78 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Emission Details
- Euro 3
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 168.0 kg (370.4 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1,330 mm (52.4 inches)
- Overall Length
- 2,045 mm (80.5 inches)
- Power Weight Ratio
- 0.5833 HP/kg
- Wheels
- Forged Alluminium, black 6-spoke
- Rear Tyre
- 180/55-17
- Frame Type
- Tubular chrome-molybdenum steel
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. 2-pistons,
- Front Brakes
- Double
- disc.
- Brembo
- , 4-pistons, 4-pads with radial
- Brembo
- calipers
- Rear Suspension
- Monoshock, fully adjustable
- Front Suspension
- 50mm Marzocchi forks
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 165 mm (6.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/white/green
