Back to Bike FinderYears: 2024 · 2023 · 2022
2024Sportbike

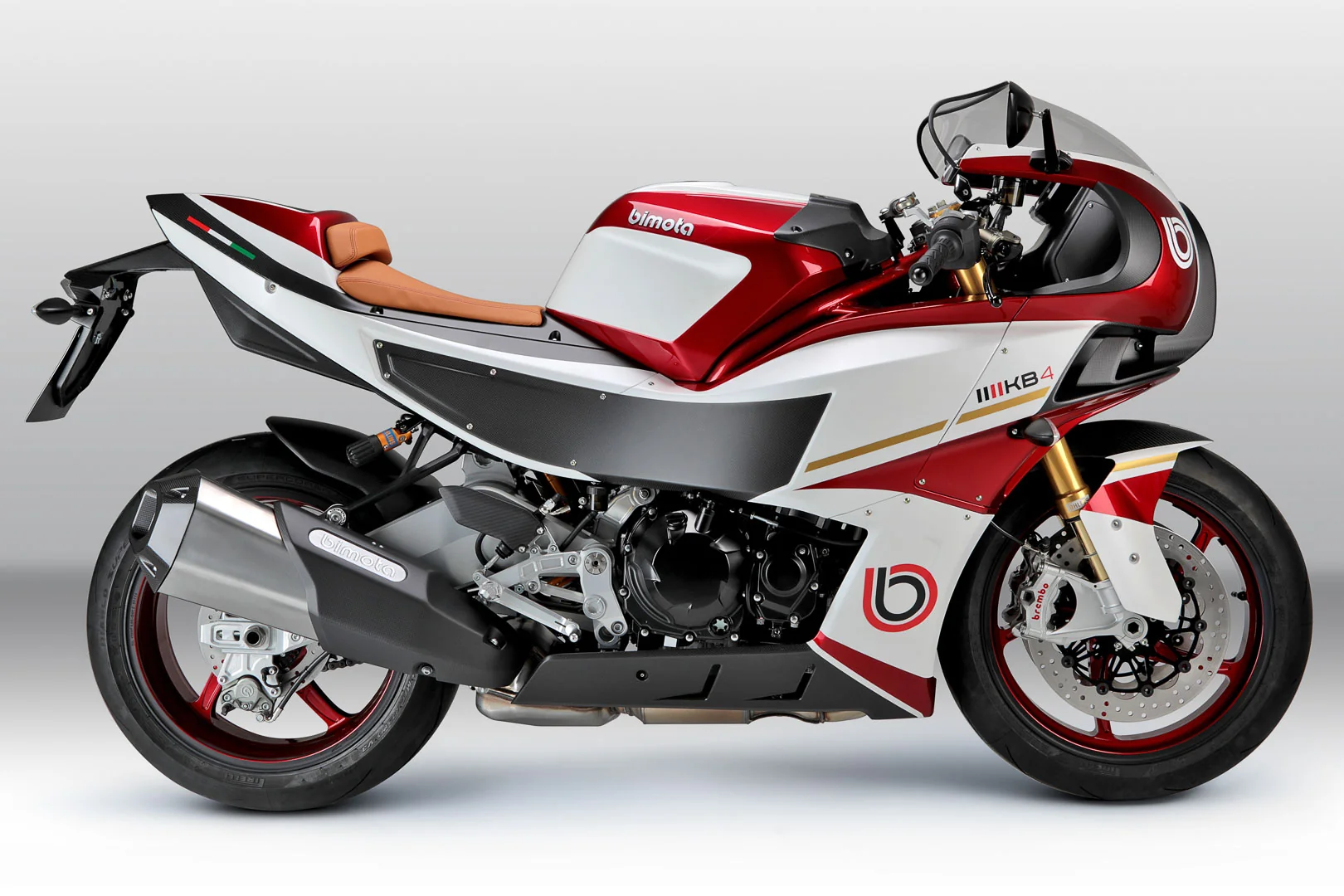

Bimota KB4
Key specifications
Engine
1043 cc
Power
142 HP
Torque
111 Nm
Fuel type
petrol
Fuel capacity
5.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Bimota
- Model
- KB4
- Category
- Sport
- Starter
- Electric
- Color Options
- Red/white
- Power
- 142.0 HP (103.6 kW)) @ 10000 RPM
- Clutch
- Wet, multi-disc
- Torque
- 111.0 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 8000 RPM
- Gearbox
- 6-speed
- Engine Type
- In-line four, four-stroke
- Fuel System
- Injection. 4 x 38 mm throttle bodies
- Bore X Stroke
- 77.0 x 56.0 mm (3.0 x 2.2 inches)
- Compression
- 11.8:1
- Displacement
- 1043.0 ccm (63.64 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 5
- Lubrication System
- Forced lubrication, wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (4.02 US quarts)
- Fuel Capacity
- 19.50 litres (5.15 US gallons)
- Overall Width
- 774 mm (30.5 inches)
- Overall Height
- 1150 mm (45.3 inches)
- Overall Length
- 2050 mm (80.7 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Weight Incl Oil Gas Etc
- 194.0 kg (427.7 pounds)
- Rake
- 24.0°
- Trail
- 101 mm (4.0 inches)
- Wheels
- Pirelli Diablo Supercorsa V3 SP tires
- Rear Tyre
- 190/50-ZR17
- Frame Type
- Trellis
- made by
- Hi
- -resistance steel with
- Aluminum
- alloy plates billet machined
- Front Tyre
- 120/70-Z17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Aluminum
- alloy
- Swingarm
- billet with Öhlins tt
- X
- 36
- Front Suspension
- R
- and and
- T
- 43
- Rear Wheel Travel
- 122 mm (4.8 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/white
