Back to Bike FinderYears: 2013 · 2012 · 2011

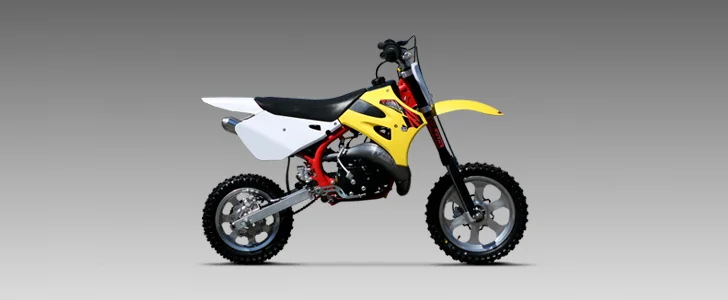

Cobra CX50 BW
2013Minibike

Cobra CX50 BW

Key specifications

Engine
50 cc
Weight
41 kg
Fuel type
petrol
Seat height
27 mm
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic

Overview

Introducing the 2013 Cobra CX50 BW, a dynamic minibike-cross machine designed for young riders and aspiring motocross champions. With its impressive blend of lightweight construction, agile handling, and robust powertrain, the CX50 BW stands out in a competitive market, appealing to both novice and experienced riders eager to conquer the dirt track. This Spanish-made minibike embodies the spirit of competition and fun, making it a perfect entry point for youngsters looking to develop their skills in the exhilarating world of motocross. At the heart of the CX50 BW is a peppy 50cc single-cylinder, two-stroke engine that delivers spirited performance while keeping things manageable for younger riders. With a bore and stroke of 39.0 x 41.7 mm, this compact powerhouse is tuned for responsive throttle response and thrilling acceleration. The liquid cooling system ensures optimal engine performance, even during extended rides, while the 19 mm carburettor fine-tunes fuel delivery for a smooth powerband. Riders will appreciate the chain final drive that provides direct power transfer, allowing for confident cornering and acceleration on the track. The engineering prowess of the CX50 BW is evident in its advanced chassis and suspension setup. Built upon a Twin Spar Oval HSLA frame, this minibike offers a lightweight yet sturdy foundation, contributing to its nimble handling. The front suspension, featuring a CARD VSTC 30mm USD fork, provides 210 mm (8.3 inches) of travel, soaking up bumps and obstacles with ease. Meanwhile, the rear suspension, equipped with a CARD piggyback shock, allows for customizable adjustments in rebound and compression, ensuring optimal performance tailored to individual rider preferences. With hydraulic disc brakes at both the front (160 mm) and rear (140 mm), the CX50 BW delivers reliable stopping power, crucial for maintaining control on the track. **

Pros

  • Lightweight and agile, making it easy for young riders to handle and maneuver.
  • Powerful and responsive 50cc two-stroke engine delivers excellent acceleration and performance.
  • High-quality suspension components allow for fine-tuning and superior ride comfort on various terrains.

Cons

  • Limited power output may not satisfy more experienced riders seeking higher performance.
  • Kick starter may be inconvenient for some riders accustomed to electric start systems.
  • Seat height at 680 mm (26.8 inches) may be too tall for shorter riders, limiting accessibility for all potential users.

Technical details

Source specification data

Make
Cobra
Model
CX50 BW
Category
Minibike-cross
Starter
Kick
Comments
Spanish bike.
Color Options
Yellow/red/black/white
Clutch
Cobra 4G x 3-Shoe
Driveline
Patented Cobra Friction Driv
Engine Type
Case Reed / V-Force® Reed Valve
Fuel System
Carburettor. 19 mm
Bore X Stroke
39.0 x 41.7 mm (1.5 x 1.6 inches)
Displacement
50.00 ccm (3.05 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, two-stroke
Transmission Type Final Drive
Chain
Dry Weight
41.0 kg (90.4 pounds)
Seat Height
680 mm (26.8 inches) If adjustable, lowest setting.
Ground Clearance
245 mm (9.6 inches)
Wheels
Spoke wheels
Rear Tyre
2.75-12
Frame Type
Twin Spar Oval HSLA
Front Tyre
60/100-14
Rear Brakes
Single disc. Hydraulic
Front Brakes
Single disc. Hydraulic
Rear Suspension
CARD piggyback rear shock with adjustable rebound, adjustable high speed compression, and adjustable low speed compression
Front Suspension
CARD VSTC 30mm USD
Rear Wheel Travel
248 mm (9.8 inches)
Front Wheel Travel
210 mm (8.3 inches)
Rear Brakes Diameter
140 mm (5.5 inches)
Front Brakes Diameter
160 mm (6.3 inches)

Available colors

Yellow/red/black/white
