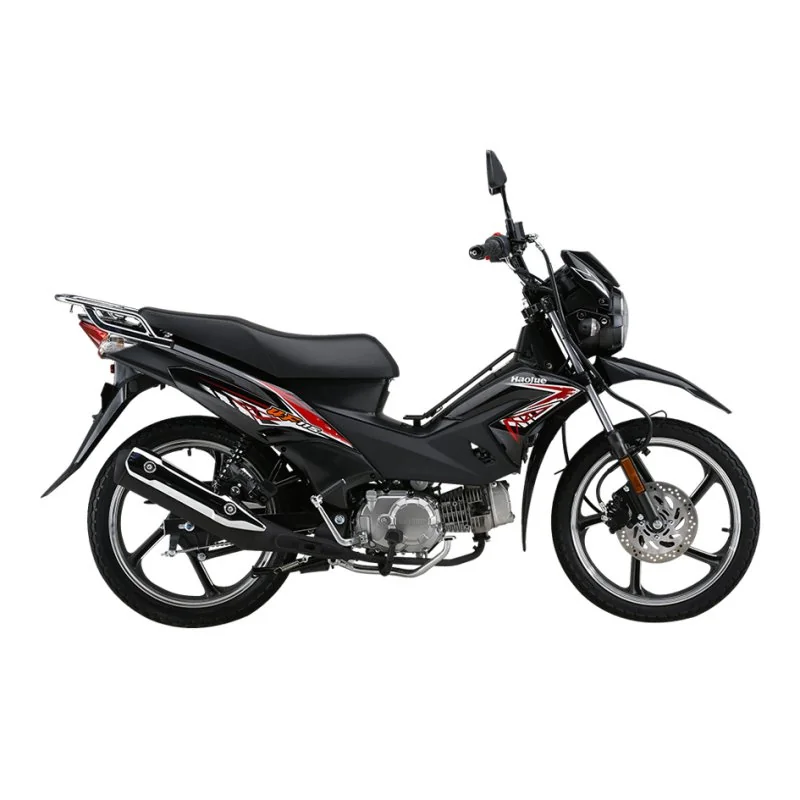

Haojue UF 115
2020Sportbike

Haojue UF 115

Key specifications

Engine
114 cc
Power
8 HP
Torque
8 Nm
Fuel type
petrol
Fuel capacity
1.1 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 2020 Haojue UF 115, a spirited contender in the sport motorcycle category that marries style with functionality. Designed for urban commuters and novice riders alike, the UF 115 stands out as an accessible yet thrilling option for those looking to navigate city streets in style. With its sleek underbone frame and an array of vibrant color options—including classic Black, striking Red/White, and dynamic Blue/White—the UF 115 is not just a mode of transportation, but a statement of individuality for the modern rider. At the heart of the UF 115 lies a robust 113.6 ccm engine that packs a punch with 8.2 horsepower at 7,500 RPM and a torque of 8.4 Nm at 5,500 RPM. This setup ensures that the motorcycle delivers a lively performance, making it an exhilarating ride for both new and experienced bikers. The air-cooled, carburetted engine is designed for efficiency, allowing riders to enjoy a responsive throttle and a smooth power delivery. The combination of a final belt drive and a lightweight chassis—tipping the scales at just 100 kg—enhances agility and maneuverability, making the UF 115 the perfect partner for zipping through traffic or enjoying a leisurely weekend ride. In terms of features, the 2020 Haojue UF 115 is equipped with both electric and kick-start options, ensuring reliability no matter the circumstances. The sporty underbone frame not only promotes a comfortable riding position, but it also contributes to the bike's overall stability and handling. Stopping power is provided by a single disc brake at the front and a reliable drum brake at the rear, instilling confidence in the rider. With a fuel capacity of 4 liters, riders can enjoy extended journeys without constant refueling, making it a practical choice for daily commutes or longer adventures. **

Pros

  • Lightweight and agile design, making it easy to maneuver in urban settings.
  • Economical engine performance with low fuel consumption, ideal for daily commuting.
  • Versatile color options that cater to diverse aesthetic preferences.

Cons

  • Limited power output may not satisfy more experienced riders seeking high performance.
  • The rear drum brake could be seen as less effective compared to disc brakes, especially in high-speed scenarios.
  • Ground clearance of 135 mm may pose challenges on uneven terrains or for taller riders.

Technical details

Source specification data

Make
Haojue
Model
UF 115
Category
Sport
Starter
Electric & kick
Color Options
White
,
Grey
,
Black
,
Red
/
White
,
Blue
/
White
,
Black
/
Power
8.2 HP (6.0 kW)) @ 7500 RPM
Torque
8.4 Nm (0.9 kgf-m or 6.2 ft.lbs) @ 5500 RPM
Ignition
TDI
Engine Type
Single cylinder, four-stroke
Fuel System
Carburettor
Bore X Stroke
51.0 x 55.6 mm (2.0 x 2.2 inches)
Compression
9.3:1
Displacement
113.6 ccm (6.93 cubic inches)
Cooling System
Air
Transmission Type Final Drive
Belt (final drive)
Seat Height
775 mm (30.5 inches) If adjustable, lowest setting.
Fuel Capacity
4.00 litres (1.06 US gallons)
Overall Width
765 mm (30.1 inches)
Overall Height
1025 mm (40.4 inches)
Overall Length
1935 mm (76.2 inches)
Ground Clearance
135 mm (5.3 inches)
Weight Incl Oil Gas Etc
100.0 kg (220.5 pounds)
Rear Tyre
80/90-17
Frame Type
Underbone
Front Tyre
70/90-17
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Single disc

Available colors

WhiteGreyBlackRed/WhiteBlue/WhiteBlack/Grey
