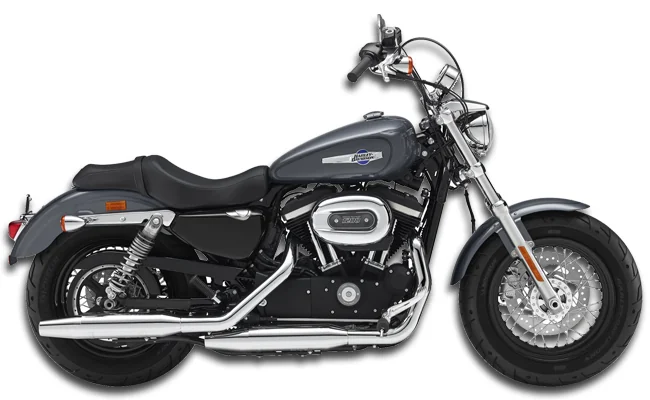

Harley-Davidson 1200 Custom Limited Edition B
2016Cruiser

Harley-Davidson 1200 Custom Limited Edition B

Key specifications

Engine
1201 cc
Power
67 HP
Torque
96 Nm
Weight
255 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
29 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2016 Harley-Davidson 1200 Custom Limited Edition B, a motorcycle that embodies the spirit of cruiser culture while delivering modern performance and style. Positioned as a standout in the custom-cruiser category, this limited edition model combines classic design elements with contemporary technology, making it a coveted choice for both seasoned riders and newcomers. With its distinctive lines and iconic V-twin engine, the 1200 Custom Limited Edition B is not just a means of transportation; it’s an expression of individuality and freedom on two wheels. At the heart of this magnificent machine lies a robust 1201.25 cc V2, four-stroke engine that produces an exhilarating 67.05 horsepower at 5750 RPM and a formidable torque of 96 Nm at 3750 RPM. This powertrain not only offers impressive acceleration but also provides ample low-end torque, allowing for effortless cruising through urban streets or winding back roads. With a 6-speed gearbox and belt final drive, riders experience smooth transitions and enhanced control, making every journey enjoyable. The air-cooled engine, paired with Electronic Sequential Port Fuel Injection (ESPFI), ensures optimal performance and fuel efficiency, averaging an impressive 4.90 liters per 100 km (48.00 mpg), ideal for those long rides where fuel stops are few and far between. The 1200 Custom Limited Edition B boasts a range of features that enhance both comfort and style. With a seat height of just 725 mm, it offers a low center of gravity, making it accessible for riders of various heights. The bike’s sleek design is complemented by striking color options like Charcoal Pearl and Black Denim, adding a touch of personal flair. The single disc brakes on both the front and rear provide reliable stopping power, while the 29.9° rake and 60 mm trail ensure a stable and confident ride. Additionally, the electric starter makes firing up this beauty effortless, allowing riders to hit the road in no time. In summary, the 2016 Harley-Davidson 1200 Custom Limited Edition B is a remarkable blend of power, style, and comfort, making it an attractive option in the custom-cruiser segment. Whether you're cruising city streets or embarking on long highway journeys, this motorcycle promises to deliver an unforgettable riding experience.

Pros

  • Powerful V-Twin Engine: The engine delivers a perfect blend of power and torque, providing an exhilarating riding experience.
  • Comfortable Riding Position: With a low seat height and ergonomic design, it caters to a wide range of riders, enhancing comfort during long rides.
  • Stylish Customization Options: The limited edition colors and classic styling allow riders to express their personal style and stand out on the road.

Cons

  • Weight: At 255 kg (562.2 lbs), the bike may feel heavy for some riders, especially at low speeds or during maneuvers.
  • Single Disc Brakes: While adequate for most conditions, some riders may prefer more stopping power with dual disc setups.
  • Fuel Capacity: With a 17-liter fuel tank, longer rides may require more frequent stops for refueling compared to bikes with larger tanks.

Technical details

Source specification data

Make
Harley-Davidson
Model
1200 Custom Limited Edition B
Category
Custom-cruiser
Light
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Starter
Electric
Comments
Model id: XL1200CB.
Instruments
Handlebar
-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout,
D
indicator lights
Color Options
Charcoal Pearl, Black Denim
Power
67.05 HP (48.9 kW)) @ 5750 RPM
Clutch
Multi-plate with diaphragm spring in oil bath
Torque
96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 3750 RPM
Gearbox
6-speed
Engine Type
Air-cooled, Evolution®
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore X Stroke
88.9 x 96.8 mm (3.5 x 3.8 inches)
Compression
10.0:1
Displacement
1201.25 ccm (73.30 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
Chrome, staggered exhaust with slash-cut mufflers
Fuel Consumption
4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Lubrication System
Dry sump
Transmission Type Final Drive
Belt
Dry Weight
255.0 kg (562.2 pounds)
Seat Height
725 mm (28.5 inches) If adjustable, lowest setting.
Oil Capacity
2.60 litres (0.17 quarts)
Fuel Capacity
17.00 litres (4.49 gallons)
Overall Length
2,225 mm (87.6 inches)
Ground Clearance
105 mm (4.1 inches)
Power Weight Ratio
0.2629 HP/kg
Weight Incl Oil Gas Etc
268.0 kg (590.8 pounds)
Rake
29.9°
Trail
60 mm (2.4 inches)
Wheels
Black steel, laced
Rear Tyre
150/80-B16
Front Tyre
130/90-B16
Rear Brakes
Single disc
Front Brakes
Single disc

Available colors

Charcoal PearlBlack Denim
