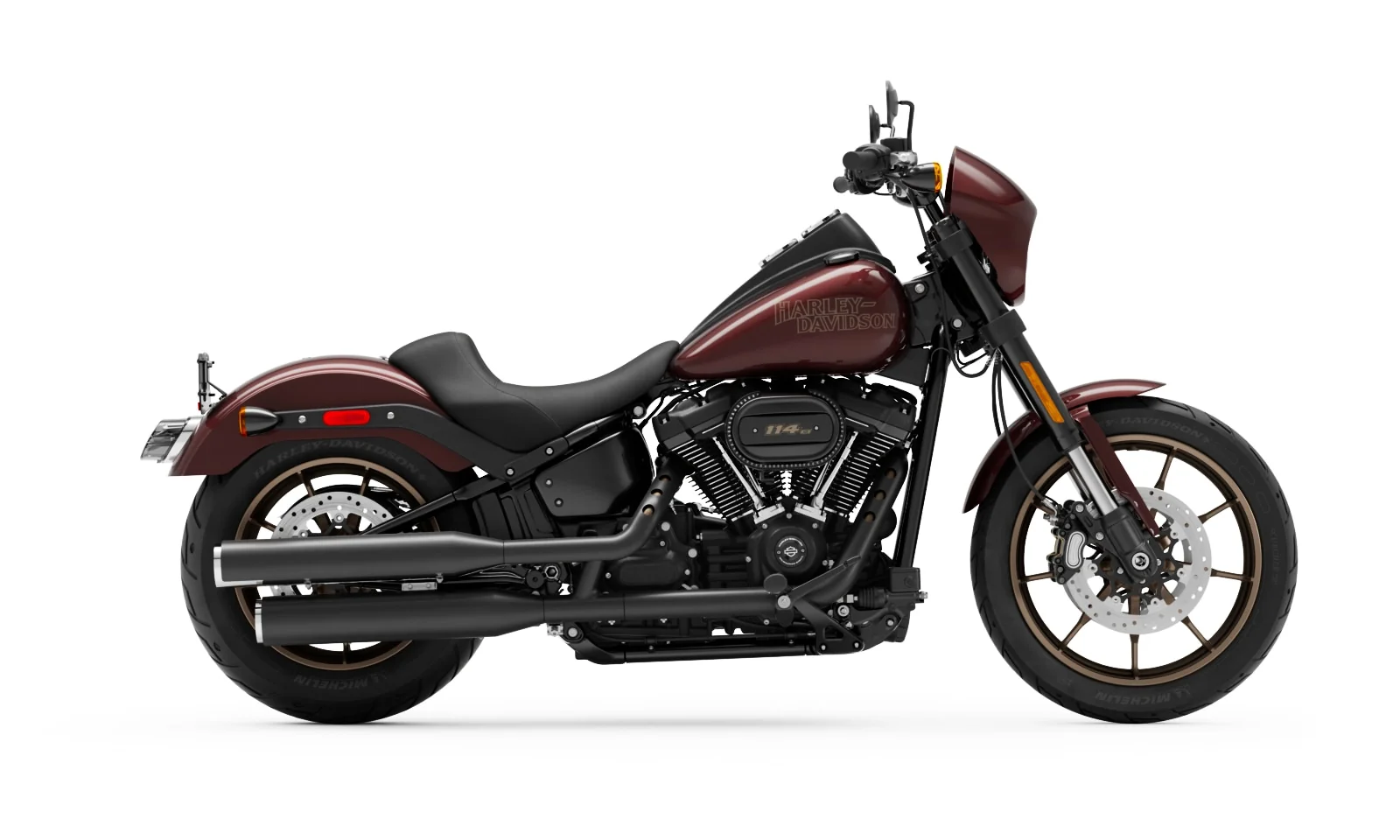

Harley-Davidson Low Rider S
Key specifications
Overview
Introducing the 2023 Harley-Davidson Low Rider S, a stunning custom-cruiser that unites classic styling with modern performance. Positioned as a bold statement in Harley's lineup, the Low Rider S is designed for riders who crave a thrilling ride while maintaining that iconic American motorcycle aesthetic. With a starting MSRP of $18,199, this bike is more than just a mode of transportation; it’s a lifestyle choice that embodies freedom, adventure, and the open road. At the heart of the Low Rider S is the powerful Milwaukee-Eight® 117 engine, boasting a hefty 1917.4 cc displacement. This beast delivers an impressive torque of 169.5 Nm at 3,000 RPM, ensuring exhilarating acceleration and a thrilling ride. The air-cooled engine features a compression ratio of 10.2:1, complemented by a smooth 6-speed gearbox that makes each gear shift a delight. Whether you're cruising down the highway or navigating city streets, the Low Rider S offers a comfortable yet engaging ride, thanks in part to its well-balanced weight of 294.8 kg (650 pounds) and a ground clearance of 145 mm (5.7 inches). With a fuel consumption of 5.00 liters per 100 km (47.04 mpg), you can enjoy long rides without constantly worrying about refueling. The Low Rider S is packed with advanced features that enhance both performance and rider comfort. Its front suspension utilizes a single cartridge 43 mm inverted aluminum fork, providing outstanding handling and stability, while the rear boasts a hidden coil-over monoshock with hydraulic preload adjustment for a tailored ride. The bike also offers optional ABS for added safety during braking, ensuring that you're well-equipped to handle any situation on the road. With a seat height of just 686 mm (27 inches), even shorter riders can find comfort and control, making this cruiser accessible for a wide range of enthusiasts. The bike is available in striking color options like Vivid Black and White Sand Pearl, allowing riders to express their individuality. **
Pros
- Powerful Engine: The Milwaukee-Eight® 117 engine delivers impressive torque and acceleration, providing an exhilarating riding experience.
- Customizable Comfort: The adjustable rear suspension ensures a personalized ride tailored to each rider's preferences.
- Iconic Style: With its classic cruiser aesthetic and striking color options, the Low Rider S stands out on the road and embodies the spirit of Harley-Davidson.
Cons
- Weight: At 294.8 kg (650 pounds), the bike may feel heavy for some riders, especially at low speeds or when maneuvering in tight spaces.
- Seat Height: While the seat height is accessible, taller riders may find it a bit cramped over long rides.
- Price Point: With a starting MSRP of $18,199, the Low Rider S may be out of reach for some budget-conscious riders looking for a custom-cruiser.
Technical details
Source specification data
- Make
- Harley-Davidson
- Model
- Low Rider S
- Price
- S
- $ 18199.
- P
- depends on country, taxes, accessories, etc.
- Category
- Custom-cruiser
- Light
- D
- , low beam, high beam and signature position lamp,
- D Zeppelin
- tail lamp,
- Incandescent
- bullet turn signals
- Starter
- Electric
- Instruments
- 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
- Color Options
- Vivid Black, White Sand Pearl
- Clutch
- Multi-plate with diaphragm spring in oil bath
- Torque
- 169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3000 RPM
- Gearbox
- 6-speed
- Driveline
- Chain 34/46 ratio primary drive
- Engine Type
- V2, four-stroke
- Fuel System
- Injection. Electronic Sequential Port Fuel Injection
- Bore X Stroke
- 103.5 x 114.3 mm (4.1 x 4.5 inches)
- Compression
- 10.2:1
- Displacement
- 1917.4 ccm (117.00 cubic inches)
- Cooling System
- Air
- Engine Details
- Milwaukee-Eight® 117
- Exhaust System
- 2-into-2 offset shotgun; catalyst in muffler
- Fuel Consumption
- 5.00 litres/100 km (20.0 km/l or 47.04 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Belt (final drive)
- Dry Weight
- 294.8 kg (650.0 pounds)
- Seat Height
- 686 mm (27.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (4.97 US quarts)
- Fuel Capacity
- 18.90 litres (4.99 US gallons)
- Overall Length
- 2365 mm (93.1 inches)
- Ground Clearance
- 145 mm (5.7 inches)
- Weight Incl Oil Gas Etc
- 308.0 kg (679.0 pounds)
- Rake
- 28.0°
- Trail
- 145 mm (5.7 inches)
- Wheels
- Dark
- bronze,
- Radiate
- cast aluminum wheel.
- Michelin
- ®
- Scorcher
- ® ´31´ tires.
- Rear Tyre
- 180/70-B16
- Front Tyre
- 110/90-B19
- Rear Brakes
- Single disc. Optional ABS. 2-piston
- Front Brakes
- Single disc. Optional ABS. 4-piston
- Rear Suspension
- Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Front Suspension
- Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
