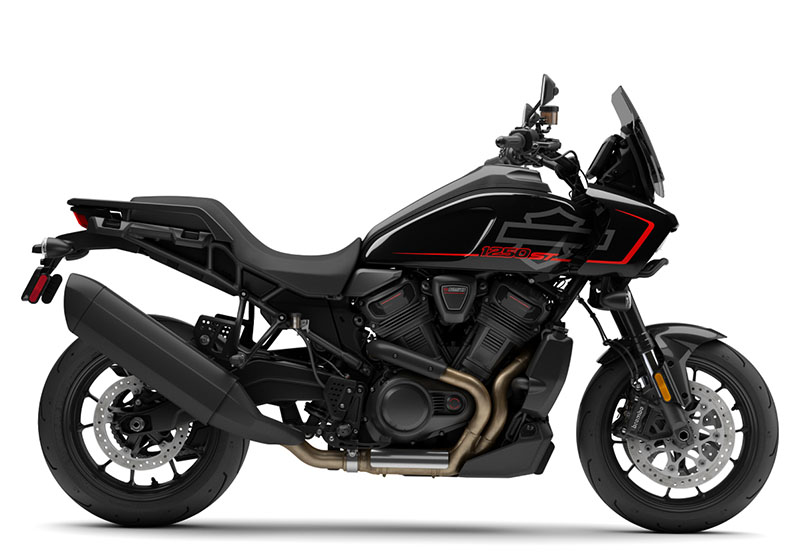

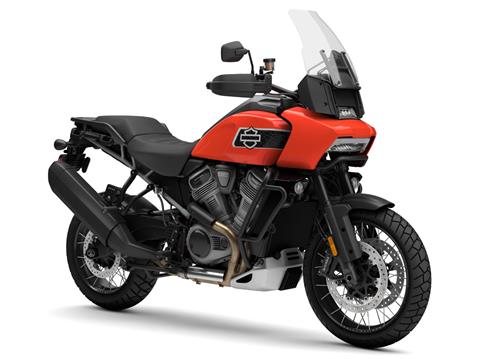

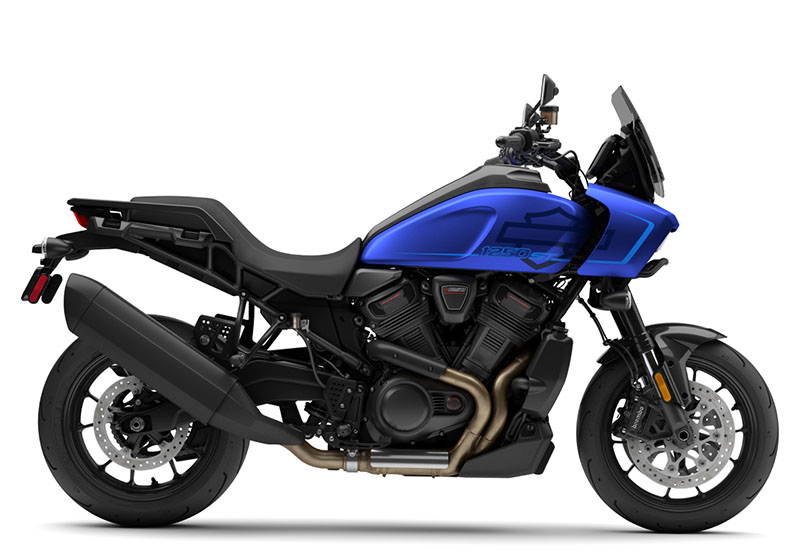

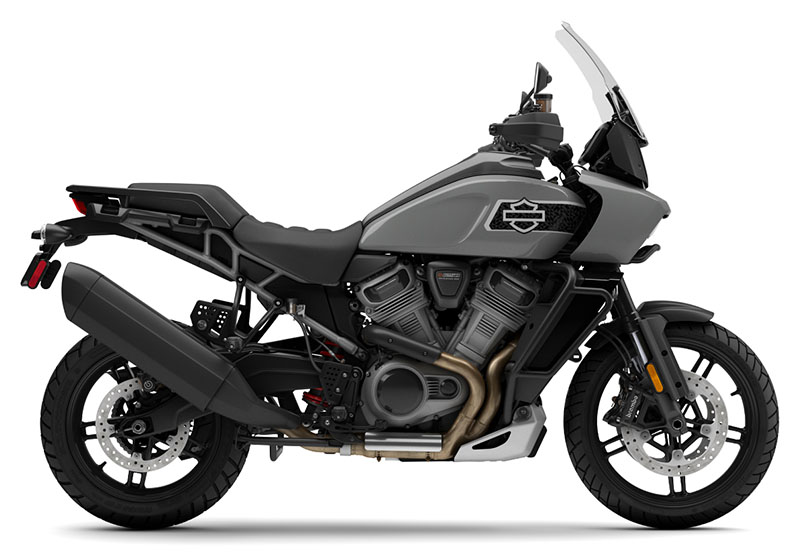

Harley Davidson Pan America® 1250 Special

$19,999

Key specifications

Engine

1252 cc

Weight

246 kg

Fuel type

petrol

Fuel capacity

21.0 L

Transmission

Manual, 6 speed, Chain

Seat height

850 mm

Front brakes

Dual Hydraulic Disc

Rear brakes

Hydraulic Disc

Technical details

Source specification data

Seats

Two: -
Driver: and
Grab Rail: or
Seat Height (in/mm): 33.4 / 850

Seat_type

Two-Piece

Seat_location

Driver and Passenger

Number_of_seats

Seat_specifications

Standard

Brakes

Brembo: ®
Anti: -
Linked Brake System Front: to
Front Brake Diameter (in/mm): 12.6 / 320
Rear Brake Diameter (in/mm): 11 / 280

Antilock_brakes

Standard

Rear_brake_type

Hydraulic Disc

Brake_brand_name

Brembo®

Front_brake_type

Dual Hydraulic Disc

Rear_brake_diameter_inmm

11 / 280

Front_brake_diameter_inmm

12.6 / 320

Linked_brake_system_front_to_rear

Standard

Engine

Revolution: ®
Engine Stroke4: -
Compression Ratio13: :1
Horsepower (bhp): 149
Torque (Nm): 124
Bore (mm/in): 105 / 4.13
Stroke (in/mm): 2.84 / 72.3
Displacement (cc/ci): 1252 / 76.4
S Miles Per Gallon (Combined): 46
N Liters Per Kilometer (Combined): 5.1

Torque

(Nm)

Valves

Cooling

Liquid

Starter

Electric

Bore_mmin

105 / 4.13

Cylinders

Fuel_type

Gas

Torque_nm

124

Horsepower

(bhp)

Torque_rpm

6750

Carburetion

Standard

Engine_type

V Twin

Stroke_inmm

2.84 / 72.3

Displacement

1252 / 76.4

Engine_stroke

4-Stroke

Fuel_injector

Yes

Horsepower_bhp

149

Horsepower_rpm

8750

Carburetion_type

Fuel Injected

Compression_ratio

13:1

Displacement_ccci

1252 / 76.4

Engine_brand_name

Revolution® Max

Engine_case_guard

Yes

Displacement_cc_ci

1252 / 76

Engine_immobilizer

Standard

Valve_configuration

DOHC

Valves_per_cylinder

Engine_immobilizer_brand

Digitally Encoded Security System: ™ (
S: )

Engine_displacement_to_weight_cc

2.31

Lights: TypeLEDHeadlight VisorStandardHeadlight (s)Standard
Headlight_s: Standard
Headlight_visor: Standard

Type

LED

Clock

Standard

Glass

Rearview MirrorsStandardWindshieldStandardTintedYesHeightHighHeight AdjustableYesWindshield LowersNo

Paint

Standard

Mounts

Windshield MountsStandard

Pocket

Tinted

Yes

Chromed

Dealers

Harley-Davidson Dealers

Folding

Pricing

P: $19,999
Warranty (Months/Condition): 24 /

Reverse

Exterior

ConstructionStandardFrameSteelFoot PegsStandardFoot Peg LocationDriver and PassengerHand GripsStandardHandlebarsStandardExterior GuardsStandardBelt GuardNoBrush GuardYesChain GuardYesDrive Shaft GuardNoEngine Case GuardYesFork GuardsYesHand GuardsYesHeel GuardsNoLight GuardYesExterior CoversStandardRadiator CoverNoFront FenderStandardRear FenderStandardTank DividerStandardPocketNoStandStandardStand TypeCenterSkid PlateStandard

Gvwr_lbs

1003

Steering

Steering ControlHandlebar

Foot_pegs

Standard

Capacities

Standard

Carburetor

Hand_grips

Standard

Handlebars

Standard

Skid_plate

Standard

Tachometer

Standard

Windshield

Standard

Convenience

Digitally Encoded Security System: ™ (
S: )

Performance

Standard

Rear_fender

Standard

Construction

Standard

Front_fender

Standard

Paint_finish

PaintStandard

Power_outlet

Standard

Tank_divider

Standard

Trip_computer

Standard

Trip_odometer

Standard

Tube_tubeless

Tubed

Cruise_control

Standard

Identification

Harley: -
Harley: -
On: -
Harley: -
Pan America: ® 1250

Parent_company

Harley-Davidson

Radiator_cover

Exterior_covers

Standard

Steering_damper

Yes

Keyless_ignition

Standard

Rearview_mirrors

Standard

Service_reminder

Standard

Steering_control

Handlebar

Adjustable_levers

Standard

Foot_peg_location

Driver and Passenger

Fuel_requirements

Regular

Heated_hand_grips

Standard

Windshield_lowers

Windshield_mounts

Standard

Destination_charge

730

Grab_rail_or_strap

Standard

Adjustable_handlebars

Standard

Technical_specifications

Length (in/mm): 89.4 / 2270
Width (in/mm): 38.4 / 975
Height (in/mm): 59.4 / 1510
Wheelbase (in/mm): 62.4 / 1585
Ground Clearance (in/mm): 6.9 / 175
Dry Weight (lbs/kg): 542 / 246
Wet Weight (lbs/kg): 578 / 262
R (lbs): 1003
Fuel Capacity (gal/l): 5.6 / 21.2
Fuel Capacity Reserve (gal/l): 1 / 3.8
Engine Displacement: to
Weight (cc): 2.31

Heated_hand_grip_location

Driver

Us_miles_per_gallon_combined

Can_liters_per_kilometer_combined

5.1

Msrp: 19,999
Price: Standard
Basic_warranty_miles: Unlimited
Warranty_monthscondition: 24 / Limited

Storage: Rear RackStandard
Rear_rack: Standard

Frame: Steel
Stand: Standard
Belt_guard: No
Stand_type: Center
Brush_guard: Yes
Chain_guard: Yes
Hand_guards: Yes
Heel_guards: No
Light_guard: Yes
Exterior_guards: Standard

Suspension

Showa: ®
Showa: ®
Rear Adjustable Shock: /
Spring Pre: -
Front Suspension Size (in/mm): 1.9 / 47
Front Travel (in/mm): 7.5 / 191
Rear Travel (in/mm): 7.5 / 191

Fork_guards

Yes

Rear_travel_inmm

7.5 / 191

Front_travel_inmm

7.5 / 191

Rear_suspension_type

Twin Sided Swing Arm

Front_suspension_type

Inverted Fork

Rear_suspension_material

Aluminum

Front_suspension_size_inmm

1.9 / 47

Rear_suspension_brand_name

Showa® BFRC

Front_suspension_brand_name

Showa® BFF

Number_rear_shock_absorbers

Front_central_suspension_strut

Rear_adjustable_rebound_damping

Yes

Front_adjustable_rebound_damping

Yes

Rear_adjustable_shock_spring_preload

Yes

Overdrive: No
Speedometer: Standard
Transmission: TransmissionStandardTransmission TypeManualNumber Of Speeds6OverdriveNoReverseNoFinal Drive Ratio2.52Primary Drive (Rear Wheel)Chain
Number_of_speeds: 6
Drive_shaft_guard: No
Final_drive_ratio: 2.52
Transmission_type: Manual
Rear_tire_speed_rating: V
Front_tire_speed_rating: V
Primary_drive_rear_wheel: Chain

Tires

Standard

Wheels

Standard

Tire_brand

Michelin®

Wheels_tires

Tube: /
Michelin: ®
Front Wheel Width (in): 3
Rear Wheel Width (in): 4.5
Michelin: ®
Scorcher: ™
Adventure: 120/70
R19: 60
Michelin: ®
Scorcher: ™
Adventure: 170/60
R17: 72

Wheels_composition

Aluminum

Rear_tire_full_spec

Michelin: ®
Scorcher: ™
Adventure: 170/60
R17: 72

Rear_wheel_diameter

Front_tire_full_spec

Michelin: ®
Scorcher: ™
Adventure: 120/70
R19: 60

Front_wheel_diameter

Generic_type_primary

On-Off Road

Rear_tire_aspect_ratio

Front_tire_aspect_ratio

Make: Harley-Davidson
Year: 2026
Introduction_year: 2021
Manufacturer_country: USA
Manufacturer_recommend_minimum_age: 16

Display_name: Pan America® 1250 Special
Instrumentation: Digital InstrumentationStandardClockStandardSpeedometerStandardTachometerStandardTrip OdometerStandardTrip ComputerStandardFuel Level WarningStandardFuel Level Warning TypeGaugeTemperature WarningStandardTemperature Warning TypeLightService ReminderStandardMulti-Lingual InstrumentationStandard
Fuel_level_warning: Standard
Temperature_warning: Standard
Digital_instrumentation: Standard
Fuel_level_warning_type: Gauge
Temperature_warning_type: Light
Multilingual_instrumentation: Standard

Height: High
Weight: Standard
Wheelbase: (in/mm)
Dimensions: Standard
Wet_weight: (lbs/kg)
Width_inmm: 38.4 / 975
Height_inmm: 59.4 / 1510
Length_inmm: 89.4 / 2270
Seat_height: (in/mm)
Fuel_capacity: Reserve (gal/l)
Wheelbase_inmm: 62.4 / 1585
Rear_tire_width: 170
Dry_weight_lbskg: 542 / 246
Front_tire_width: 120
Seat_height_inmm: 33.4 / 850
Wet_weight_lbskg: 578 / 262
Height_adjustable: Yes
Fuel_capacity_gall: 5.6 / 21.2
Rear_wheel_width_in: 4.5
Front_wheel_width_in: 3
Ground_clearance_inmm: 6.9 / 175
Fuel_capacity_reserve_gall: 1 / 3.8
