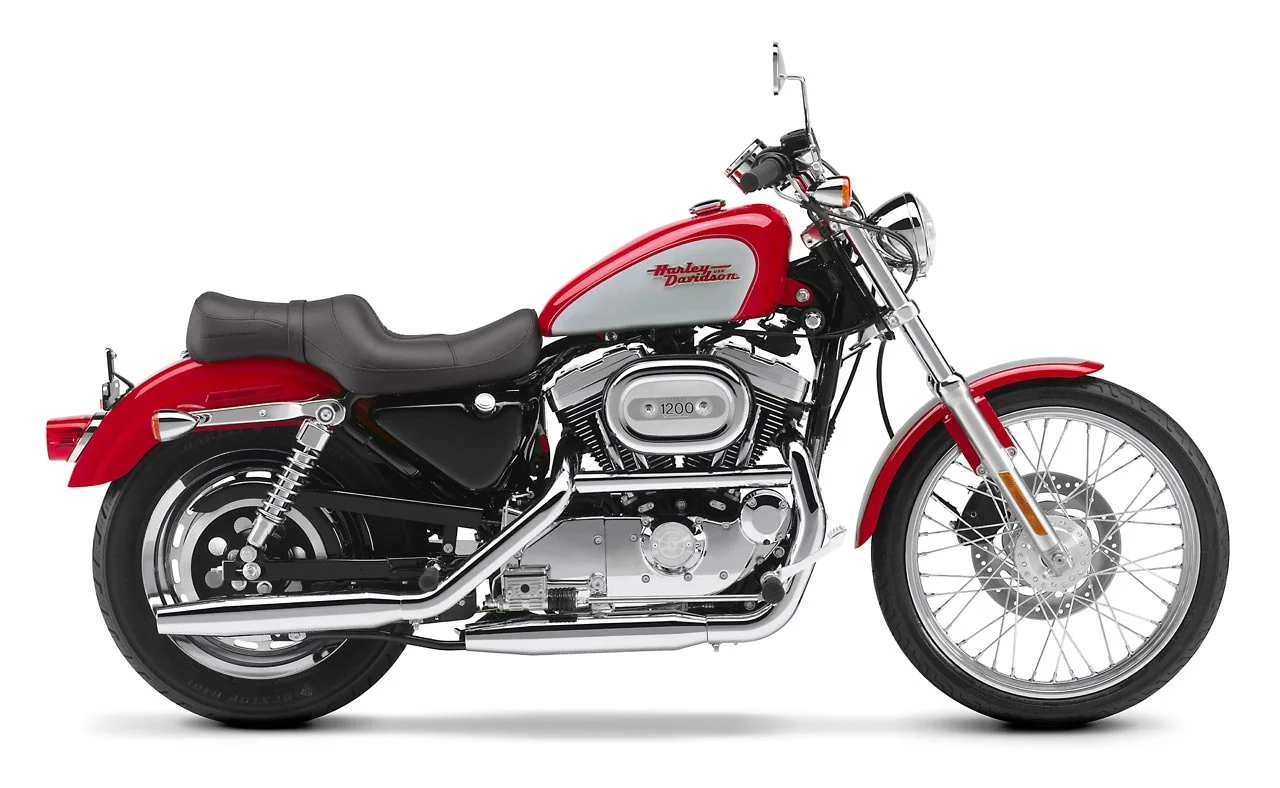

Harley-Davidson XL 1200 C Sportster 1200 Custom
2002Cruiser

Harley-Davidson XL 1200 C Sportster 1200 Custom

Key specifications

Engine
1199 cc
Torque
87 Nm
Weight
245 kg
Fuel type
petrol
Fuel capacity
3.3 L
Seat height
28 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2002 Harley-Davidson XL 1200 C Sportster 1200 Custom, a motorcycle that perfectly embodies the spirit of American cruising. Nestled within the iconic Sportster lineup, this custom-cruiser is designed for riders who appreciate a blend of classic styling and modern performance. With its timeless design and iconic V-twin engine, the XL 1200 C stands out in the crowded motorcycle market as an excellent choice for both seasoned riders and newcomers alike, seeking to experience the open road with a touch of Harley heritage. At the heart of the XL 1200 C is a robust 1199cc V2, four-stroke engine, delivering a thrilling torque of 87 Nm at 3900 RPM. The harmonious balance of performance and responsiveness makes every twist of the throttle a delight. With a bore and stroke of 88.8 mm by 96.8 mm, this engine not only provides ample power for spirited rides but also ensures a smooth and engaging experience on the highway. The air-cooled design, paired with a reliable carburettor fuel system, maintains the classic charm while allowing riders to embrace the raw feel of the road. Whether you’re cruising along scenic byways or tackling urban streets, the XL 1200 C delivers a ride that’s as exhilarating as it is comfortable. The 2002 Sportster 1200 Custom is replete with features that enhance both functionality and style. With a sleek chassis and a seat height of just 700 mm, this bike is accessible for riders of various sizes, providing a confident riding posture. The dual single-disc brakes, both front and rear, ensure reliable stopping power, while the 12.5-litre fuel tank allows for longer journeys without frequent refueling stops. Its classic Harley aesthetics, complete with chrome accents and a custom-tailored seat, not only turn heads but also reflect the attention to detail that sets the Sportster apart. The belt final drive smoothens the power delivery, making for a more enjoyable and less maintenance-intensive ride. **

Pros

  • Iconic Design: The classic Harley-Davidson styling offers a timeless appeal that resonates with motorcycle enthusiasts.
  • Comfortable Ride: With a low seat height and well-padded seat, the XL 1200 C provides a comfortable riding experience for both short trips and long hauls.
  • Strong Performance: The V2 engine delivers impressive torque, making it suitable for both city commuting and highway cruising.

Cons

  • Weight: At 540.1 pounds, the bike can feel heavy, particularly for novice riders or when maneuvering at low speeds.
  • Limited Technology: The carburettor fuel system may not offer the same efficiency and tuning capabilities as modern fuel-injected systems.
  • Fuel Capacity: With a fuel tank of just 12.5 litres, long-distance riders may find themselves stopping for fuel more often than desired.

Technical details

Source specification data

Make
Harley-Davidson
Model
XL 1200 C Sportster 1200 Custom
Category
Custom-cruiser
Torque
87.00 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 3900 RPM
Fuel System
Carburettor
Bore X Stroke
88.8 x 96.8 mm (3.5 x 3.8 inches)
Displacement
1199.00 ccm (73.16 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Transmission Type Final Drive
Belt
Dry Weight
245.0 kg (540.1 pounds)
Seat Height
700 mm (27.6 inches) If adjustable, lowest setting.
Fuel Capacity
12.50 litres (3.30 gallons)
Overall Length
2,245 mm (88.4 inches)
Ground Clearance
159 mm (6.3 inches)
Reserve Fuel Capacity
1.90 litres (0.50 gallons)
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Brakes Diameter
292 mm (11.5 inches)
Front Brakes Diameter
292 mm (11.5 inches)
