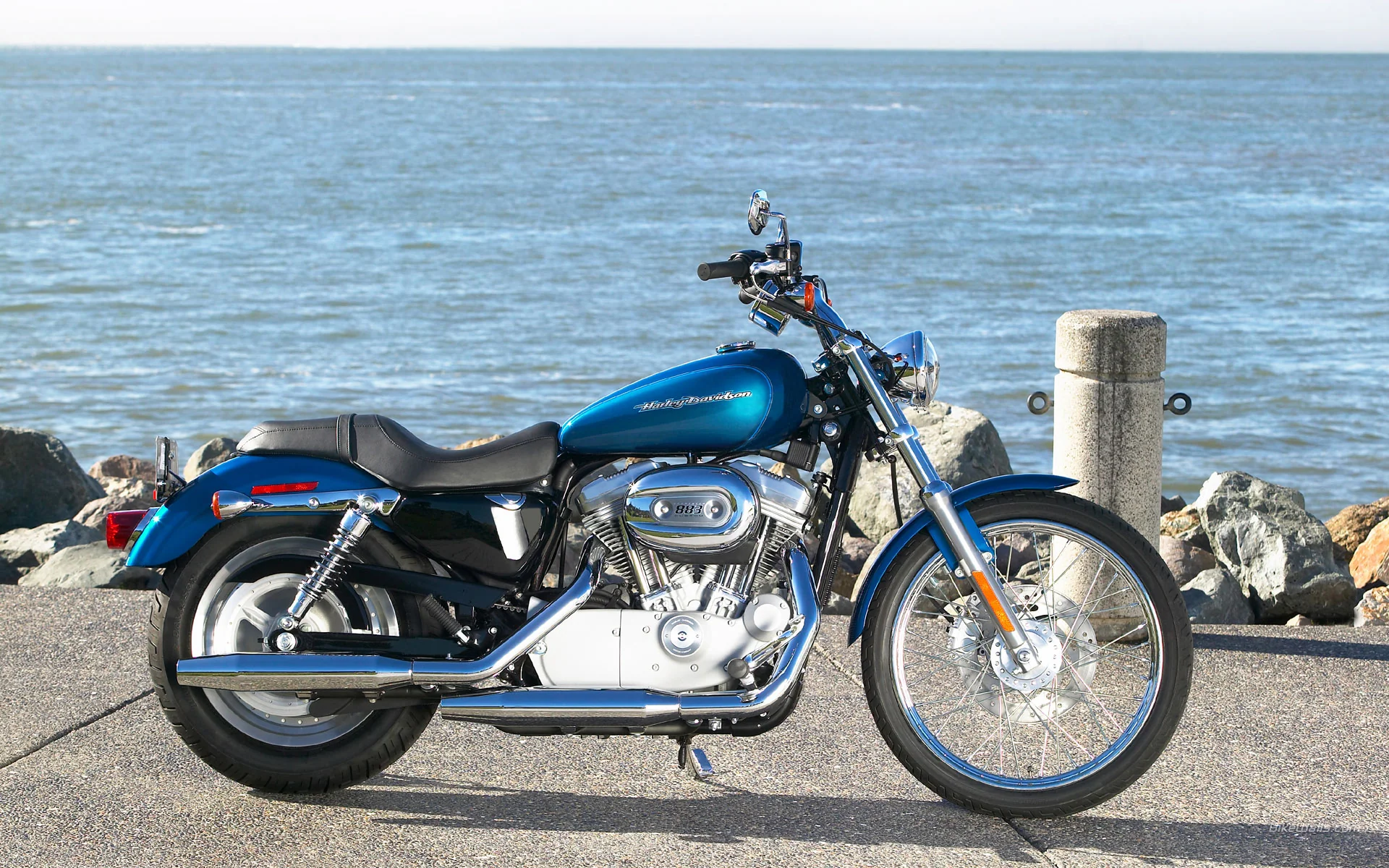

Harley-Davidson XL 883 C Sportster Custom
2005Cruiser

Harley-Davidson XL 883 C Sportster Custom

Key specifications

Engine
883 cc
Torque
69 Nm
Weight
255 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2005 Harley-Davidson XL 883 C Sportster Custom, a striking embodiment of the American custom-cruiser spirit. This model stands out in Harley-Davidson's iconic Sportster lineup, appealing to riders who appreciate a blend of classic styling and modern performance. The XL 883 C is designed for those who crave a soulful riding experience, wrapped in an aesthetic that pays homage to Harley’s storied history while adding a personal touch through its customizable options. With a variety of color choices—ranging from the timeless Vivid Black to the eye-catching Two-Tone Rich Sunglo Blue—this motorcycle offers individuality and flair to every rider. At the heart of the XL 883 C is its robust 883cc V-twin engine, delivering a gratifying torque of 69 Nm at 4200 RPM. This air-cooled, four-stroke powerhouse, with a compression ratio of 9.0:1, ensures lively acceleration and a dynamic riding experience. The 5-speed gearbox paired with a smooth belt final drive allows for seamless transitions between gears, whether you're cruising down the highway or navigating city streets. With its low seat height of 673 mm (26.5 inches), the XL 883 C offers a comfortable stance for riders of all sizes, making it an accessible choice for both seasoned motorcyclists and newcomers alike. The 2005 Sportster Custom is not just about power; it's also equipped with features that enhance the riding experience. Its chassis is designed with a rake of 30.1°, providing stability and agility, while the single disc brakes, both front and rear, ensure reliable stopping power. The bike's weight of 255 kg (562.2 pounds) gives it a solid feel on the road, and the generous 17.40-litre (4.60 gallons) fuel tank means you can enjoy those long rides without frequent stops. Additionally, the multi-plate clutch in an oil bath offers smooth engagement, allowing for confident handling in various riding conditions. **

Pros

  • Iconic Styling: The classic design and customizable options make the XL 883 C a head-turner on the road.
  • Smooth Power Delivery: The V-twin engine provides a satisfying torque curve, perfect for cruising and city riding.
  • Comfortable Ride: The low seat height and balanced weight distribution offer an enjoyable riding experience for various riders.

Cons

  • Limited Storage: As a custom-cruiser, the bike lacks integrated storage options, which may require additional aftermarket solutions for longer trips.
  • Vibrations at High Speeds: Riders may notice increased vibrations at higher RPMs, which can affect comfort during extended highway rides.
  • Basic Instrumentation: The instrumentation is straightforward but lacks advanced features like trip computers or fuel gauges that some riders might expect in modern motorcycles.

Technical details

Source specification data

Make
Harley-Davidson
Model
XL 883 C Sportster Custom
Category
Custom-cruiser
Color Options
Vivid black, brilliant silver pearl, sierra red pearl, black cherry pearl, glacier white pearl, rich sunglo blue, yellow pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone sierra red p
Clutch
Multi-plate clutch with diaphragm spring in oil bath.
Torque
69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM
Gearbox
5-speed
Fuel System
Carburettor
Bore X Stroke
76.2 x 96.8 mm (3.0 x 3.8 inches)
Compression
9.0:1
Displacement
883.00 ccm (53.88 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
Staggered shorty duals
Valves Per Cylinder
2
Transmission Type Final Drive
Belt
Dry Weight
255.0 kg (562.2 pounds)
Seat Height
673 mm (26.5 inches) If adjustable, lowest setting.
Fuel Capacity
17.40 litres (4.60 gallons)
Overall Length
2,275 mm (89.6 inches)
Ground Clearance
112 mm (4.4 inches)
Rake
30.1°
Rear Tyre
150/80-16
Front Tyre
MH90-21
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Brakes Diameter
292 mm (11.5 inches)
Front Brakes Diameter
292 mm (11.5 inches)

Available colors

Vivid blackbrilliant silver pearlsierra red pearlblack cherry pearlglacier white pearlrich sunglo blueyellow pearltwo-tone rich sunglo blue and chopper blue pearltwo-tone chopper blue pearl and brilliant silver pearltwo-tone sierra red p
