Harley-Davidson XLH 883 Sportster 883 Hugger
2002Cruiser

Harley-Davidson XLH 883 Sportster 883 Hugger

Key specifications

Engine
883 cc
Torque
67 Nm
Weight
235 kg
Fuel type
petrol
Fuel capacity
3.3 L
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

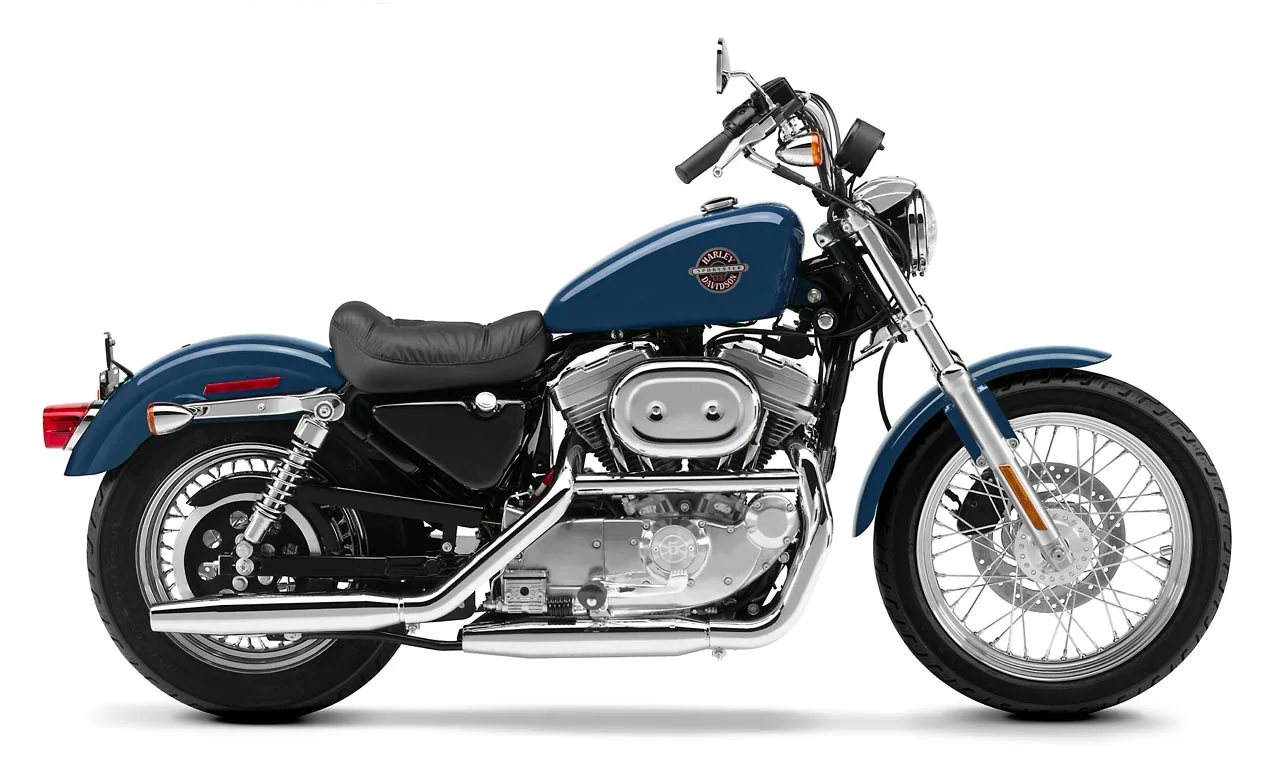

Introducing the 2002 Harley-Davidson XLH 883 Sportster 883 Hugger, a quintessential custom-cruiser that captures the spirit of rebellion and freedom synonymous with the Harley brand. With its low-slung silhouette and distinctive styling, the Hugger is designed for riders who appreciate the classic essence of motorcycling while craving a bike that’s agile and approachable. This model shines particularly for its ergonomic design, making it an enticing option for both seasoned riders and newcomers looking for a versatile machine that can conquer city streets and open roads alike. At the heart of the Sportster 883 Hugger lies a robust 883cc V2 engine, delivering a hearty torque of 67 Nm at 4,400 RPM. This four-stroke powerhouse is paired with a carburettor fuel system, ensuring a responsive throttle and a thrilling ride experience. The smooth power delivery and the engaging roar of the engine provide an exhilarating ride, complemented by the bike's lightweight frame at 235 kg (518 lbs). The Hugger’s low seat height of just 688 mm (27.1 inches) enhances rider confidence, making it accessible for a variety of riders, while the belt final drive ensures smooth power transfer, enhancing the overall riding experience. The 2002 XLH 883 Hugger is not just about performance; it also boasts several features that enhance both comfort and control. With single disc brakes at both the front and rear, each measuring 292 mm (11.5 inches), stopping power is reliable and effective. The bike's air-cooled engine keeps it running efficiently, even during longer rides. Additionally, with a fuel capacity of 12.5 liters (3.30 gallons), the Hugger is well-equipped for those weekend getaways. The minimalist styling reflects Harley-Davidson’s heritage while providing an inviting canvas for customization, allowing riders to make it their own. **

Pros

  • Accessible Ergonomics: The low seat height and lightweight design make it a great option for both new and shorter riders.
  • Classic Harley Sound and Feel: The V2 engine delivers that iconic rumble that Harley enthusiasts adore.
  • Customization Potential: The minimalist design and robust aftermarket support allow for extensive personalization options.

Cons

  • Limited Power Compared to Larger Models: While the 883cc engine offers solid performance, it may not satisfy those seeking high-end speed and power.
  • Basic Suspension Components: The suspension may feel less sophisticated compared to modern sportier models, affecting ride comfort on rougher roads.
  • Weight: Although relatively light for a cruiser, some riders may still find it cumbersome in tight maneuvering situations or at low speeds.

Technical details

Source specification data

Make
Harley-Davidson
Model
XLH 883 Sportster 883 Hugger
Category
Custom-cruiser
Torque
67.00 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 4400 RPM
Fuel System
Carburettor
Bore X Stroke
76.2 x 96.8 mm (3.0 x 3.8 inches)
Compression
9.0:1
Displacement
883.00 ccm (53.88 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Transmission Type Final Drive
Belt
Dry Weight
235.0 kg (518.1 pounds)
Seat Height
688 mm (27.1 inches) If adjustable, lowest setting.
Fuel Capacity
12.50 litres (3.30 gallons)
Overall Length
2,230 mm (87.8 inches)
Ground Clearance
119 mm (4.7 inches)
Reserve Fuel Capacity
1.90 litres (0.50 gallons)
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Brakes Diameter
292 mm (11.5 inches)
Front Brakes Diameter
292 mm (11.5 inches)
