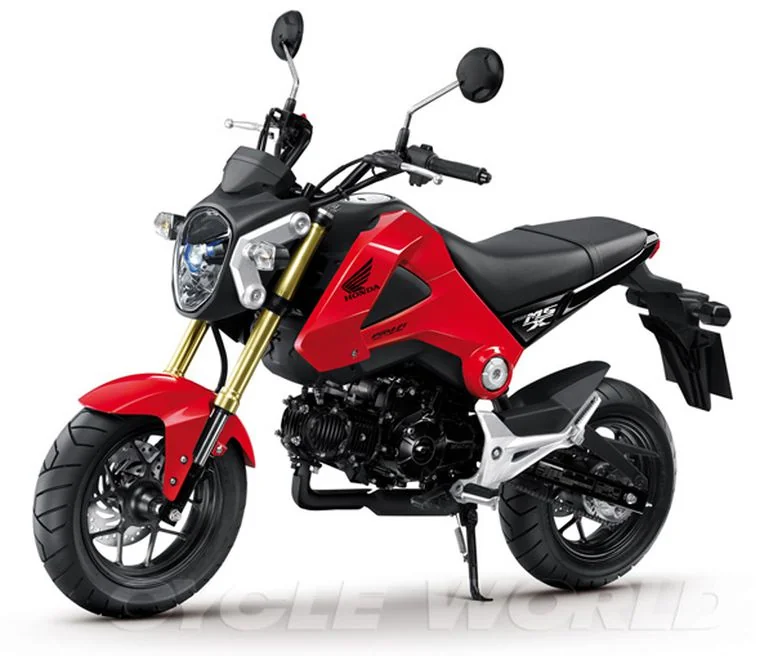

Honda MSX 125
2014Allround

Honda MSX 125

Key specifications

Engine
125 cc
Power
10 HP
Torque
11 Nm
Fuel type
petrol
Fuel capacity
1.5 L
Transmission
4-speed
Seat height
30 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 2014 Honda MSX 125, a compact yet versatile motorcycle that has carved a niche for itself in the allround category. Known in some markets as the Grom, this little beast is designed for urban riders and beginners alike, offering a perfect blend of practicality and fun. Its eye-catching, mini-moto styling is not just a conversation starter; it also embodies a spirit of adventure that invites riders to explore city streets, back roads, and everything in between. With Honda's reputation for reliability and performance, the MSX 125 aims to deliver a memorable riding experience that appeals to both seasoned enthusiasts and newcomers to the two-wheeled world. Under the sleek exterior lies a robust 124.90 ccm single-cylinder, four-stroke engine that generates an impressive 9.66 horsepower at 7,000 RPM and a torque of 10.90 Nm at 5,500 RPM. This setup ensures that the MSX 125 is not just about looks; it provides exhilarating acceleration and nimble handling. The lightweight frame, tipping the scales at just 101.7 kg (224.2 pounds), paired with a 4-speed gearbox and chain final drive, allows for smooth transitions and responsive throttle control. Riders will appreciate the bike's liquid-cooled system, which maintains optimal engine performance even during spirited rides. The MSX 125 excels in urban environments, easily maneuvering through traffic and tight corners, making daily commutes or weekend adventures an absolute joy. The MSX 125 is also packed with features that enhance both safety and comfort. Its drum brakes, while traditional, offer reliable stopping power, and the bike's compact dimensions make it approachable for riders of all heights, thanks to a seat height of just 765 mm (30.1 inches). The minimalist design is complemented by an electric starter, providing an effortless ignition experience. With a fuel capacity of 5.50 litres (1.45 gallons), riders can expect decent range, perfect for zipping around town without frequent stops at the pump. Additionally, the MSX 125's stylish and functional design makes it a canvas for customization, allowing riders to personalize their machines to reflect their unique style. **

Pros

  • Lightweight and Maneuverable: At only 101.7 kg, the MSX 125 is easy to handle, making it ideal for new riders.
  • Fun Factor: The spirited engine and agile chassis create an engaging riding experience, perfect for urban exploration.
  • Customization Potential: The bike's unique design invites modifications, allowing riders to make it their own.

Cons

  • Limited Power for Highway Riding: The engine's output may not be sufficient for sustained highway cruising, making it more suitable for city rides.
  • Drum Brakes: While adequate for urban use, the drum brake system may not provide the same performance as disc brakes in more demanding riding conditions.
  • Minimal Wind Protection: The compact design offers little in the way of wind protection, which can be uncomfortable on longer journeys or at higher speeds.

Technical details

Source specification data

Make
Honda
Model
MSX 125
Category
Allround
Starter
Electric
Electrical
12V 3.5AH battery.
Power
9.66 HP (7.1 kW)) @ 7000 RPM
Clutch
Wet multiplate
Torque
10.90 Nm (1.1 kgf-m or 8.0 ft.lbs) @ 5500 RPM
Gearbox
4-speed
Fuel System
Injection
Bore X Stroke
52.4 x 57.9 mm (2.1 x 2.3 inches)
Compression
9.3:1
Displacement
124.90 ccm (7.62 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Transmission Type Final Drive
Chain
Seat Height
765 mm (30.1 inches) If adjustable, lowest setting.
Oil Capacity
1.10 litres (0.07 quarts)
Fuel Capacity
5.50 litres (1.45 gallons)
Overall Width
600 mm (23.6 inches)
Overall Length
1,365 mm (53.7 inches)
Ground Clearance
160 mm (6.3 inches)
Weight Incl Oil Gas Etc
101.7 kg (224.2 pounds)
Rake
25.0°
Trail
81 mm (3.2 inches)
Rear Tyre
130/70-12
Front Tyre
120/70-12
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Expanding brake (drum brake)
