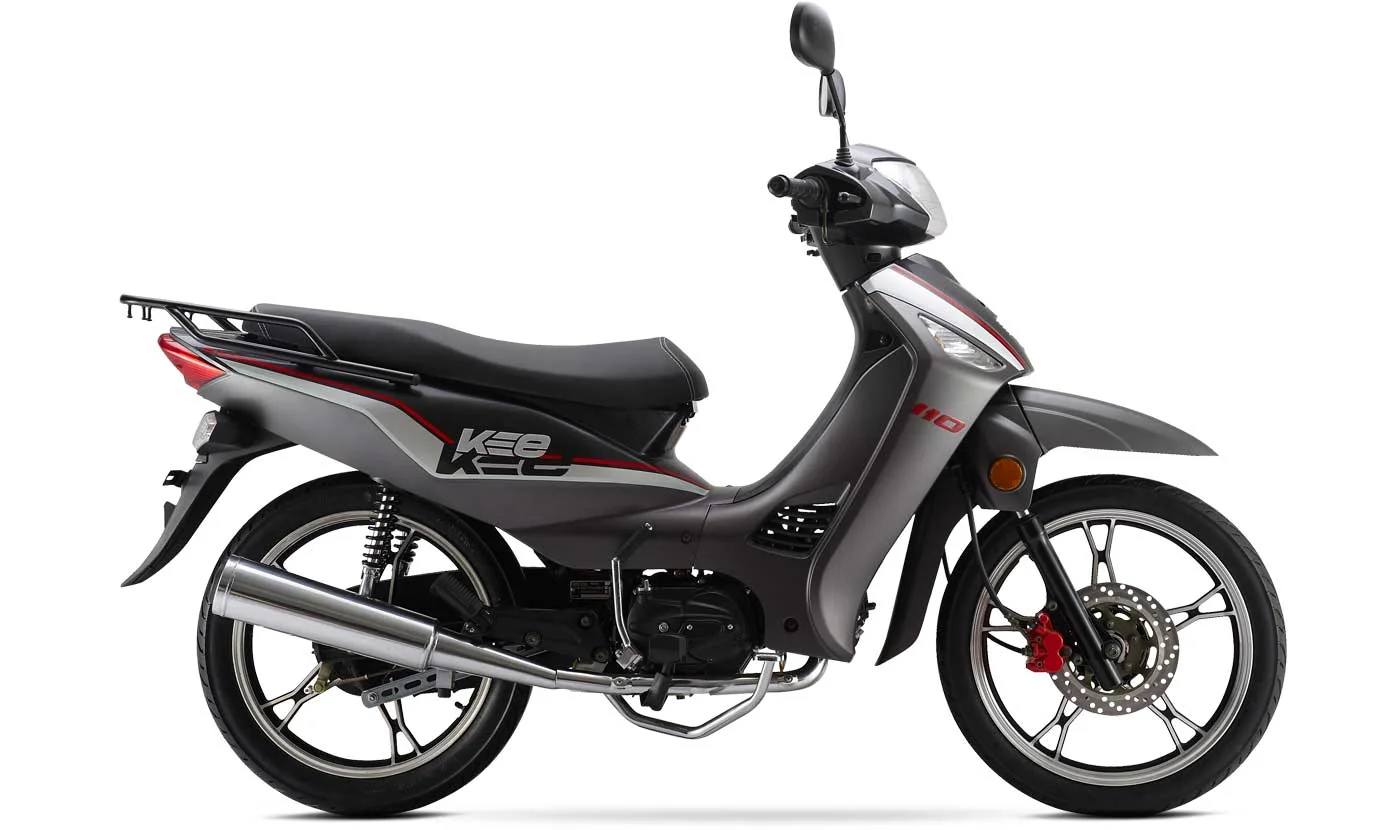

Keeway Cub 110
2016Scooter

Keeway Cub 110

Key specifications

Engine
109 cc
Power
7 HP
Torque
8 Nm
Weight
103 kg
Fuel type
petrol
Fuel capacity
1.3 L
Transmission
4-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 2016 Keeway Cub 110—a nimble and stylish scooter that seamlessly blends retro aesthetics with modern functionality. Positioned as an ideal urban commuter, the Cub 110 caters to both novice riders and seasoned enthusiasts looking for an economical yet fun ride. With its compact dimensions and lightweight frame, this scooter proves to be a practical solution for navigating congested city streets while offering a dash of charm that evokes nostalgia. Whether you’re darting through traffic or cruising along scenic routes, the Keeway Cub 110 is ready to deliver an enjoyable riding experience. At the heart of the Cub 110 lies a reliable 109cc single-cylinder four-stroke engine, producing an impressive 6.85 horsepower and 7.76 Nm of torque. This powertrain is engineered to provide smooth acceleration and efficient performance, particularly in urban environments. With a top speed of 85 km/h (52.8 mph), the Cub 110 strikes a perfect balance between agility and stability, making it ideal for both short commutes and leisurely weekend rides. The 4-speed gearbox, paired with a wet, multiple-plate clutch, ensures seamless shifts, while the air-cooled design keeps the engine running cool even during extended rides. The 2016 Keeway Cub 110 is not just about performance; it’s also packed with features that enhance the riding experience. The scooter boasts a comfortable seat height of 780 mm, making it accessible for riders of various heights. Its suspension system, featuring telescopic forks at the front and oil-damped coil springs at the rear, provides a smooth ride over uneven surfaces. Safety is prioritized with a reliable braking system that includes a single disc brake at the front and a drum brake at the rear, ensuring you can stop confidently in any situation. With a fuel capacity of 4.80 liters, the Cub 110 is designed for longer rides without frequent stops at the pump, promoting an adventurous spirit. **

Pros

  • Economical Performance: With a powerful yet efficient 109cc engine, the Cub 110 offers excellent fuel economy, making it a cost-effective choice for daily commuting.
  • Lightweight and Agile: Weighing only 103 kg (227 pounds), this scooter is incredibly easy to maneuver, allowing for swift navigation through city traffic.
  • Retro Aesthetic: Its classic design exudes charm, appealing to both younger riders and those who appreciate vintage styling.

Cons

  • Limited Top Speed: While adequate for city riding, its maximum speed of 85 km/h may be limiting for those seeking faster highway travel.
  • Basic Features: As a budget-friendly model, the Cub 110 may lack some advanced technology and features found in higher-end scooters.
  • Small Fuel Tank: The 4.80-liter fuel capacity may require more frequent refueling on longer journeys, which could be inconvenient for some riders.

Technical details

Source specification data

Make
Keeway
Model
Cub 110
Category
Scooter
Starter
Electric & kick
Comments
Keeway
is the
American
and
European
brand name of
Qianjiang
,
China
.
Color Options
Silver
Power
6.85 HP (5.0 kW)) @ 7500 RPM
Clutch
Wet, multiple-plate
Torque
7.76 Nm (0.8 kgf-m or 5.7 ft.lbs) @ 5000 RPM
Gearbox
4-speed
Ignition
C.D.I
Top Speed
85.0 km/h (52.8 mph)
Fuel System
Carburettor
Bore X Stroke
50.0 x 55.5 mm (2.0 x 2.2 inches)
Compression
9.6:1
Displacement
109.00 ccm (6.65 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, four-stroke
Lubrication System
Pressure splash lubrication
Valves Per Cylinder
2
Transmission Type Final Drive
Chain
Dry Weight
103.0 kg (227.1 pounds)
Seat Height
780 mm (30.7 inches) If adjustable, lowest setting.
Fuel Capacity
4.80 litres (1.27 gallons)
Overall Length
1,950 mm (76.8 inches)
Ground Clearance
125 mm (4.9 inches)
Power Weight Ratio
0.0665 HP/kg
Wheels
Wire spoked
Rear Tyre
2.75-17
Frame Type
Straddle type
Front Tyre
2.50-17
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Single disc
Rear Suspension
Telescopic coil spring oil damped
Front Suspension
Telescopic forks
Rear Wheel Travel
78 mm (3.1 inches)
Front Wheel Travel
98 mm (3.9 inches)
Rear Brakes Diameter
130 mm (5.1 inches)
Front Brakes Diameter
217 mm (8.5 inches)

Available colors

Silver
