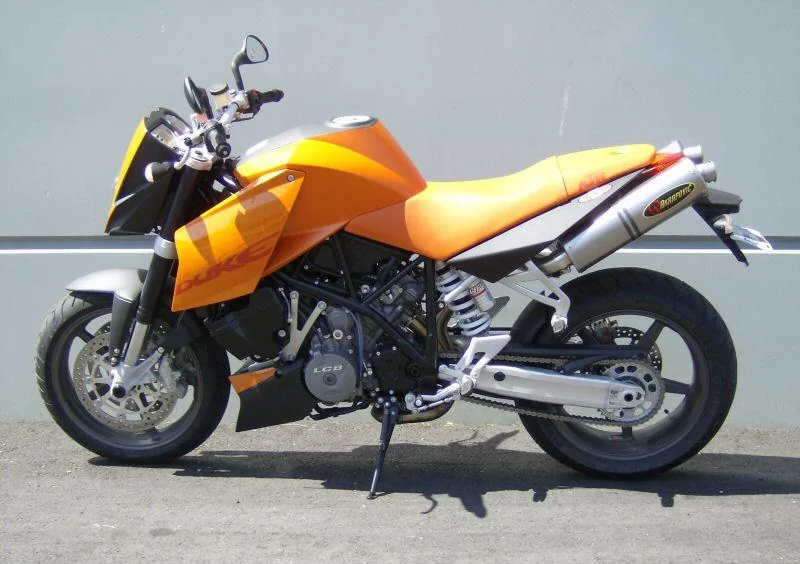

KTM 990 Super Duke Orange
Key specifications
Overview
Introducing the 2005 KTM 990 Super Duke Orange, a striking naked bike that embodies the spirit of freedom and the thrill of the open road. Standing out in KTM's lineup with its vibrant orange aesthetics and aggressive stance, the Super Duke is designed for riders who crave a raw, unfiltered motorcycle experience. This machine is an ideal choice for those who want to combine daily commuting with spirited weekend rides, all while enjoying the benefits of a lightweight and agile platform. Its unique blend of performance and style ensures that it not only turns heads but also delivers a ride that is exhilarating and engaging. At the heart of the Super Duke lies a powerful 999cc V2 engine, delivering an impressive 118 horsepower at 9,000 RPM and a robust torque of 100 Nm at 7,000 RPM. This engine, coupled with a 6-speed gearbox and a wet multi-disc hydraulic clutch, provides smooth power delivery and intuitive handling. With a compression ratio of 11.5:1 and a precision-engineered fuel system featuring the Keihin MX FCR 41 carburettor, the Super Duke's powertrain is designed for performance enthusiasts who appreciate immediate throttle response and exhilarating acceleration. The bike’s lightweight construction, weighing in at just 184 kg (405.7 lbs), enhances its agility and responsiveness, making it a delight to navigate through twists and turns. The 990 Super Duke is equipped with advanced features and technology that enhance both performance and rider comfort. The chassis is constructed from durable chromium-molybdenum, providing a robust foundation while ensuring agility in handling. Its WP-USD 48 mm front suspension and WP monoshock rear suspension contribute to a smooth ride across various terrains, while the powerful braking system—featuring dual 320 mm front discs and a 240 mm rear disc—ensures stopping power that matches its performance. With a seat height of 855 mm and a ground clearance of 165 mm, the bike is accessible to a range of riders, allowing for confident handling and control in diverse riding conditions. **
Pros
- Impressive Power-to-Weight Ratio: At 0.6413 HP/kg, the Super Duke accelerates quickly and responds dynamically to rider inputs.
- Agile Handling: The lightweight frame and advanced suspension setup allow for nimble maneuverability, making it ideal for urban riding and twisty backroads.
- Striking Design: The iconic KTM orange color and aggressive styling ensure the Super Duke stands out in any crowd, appealing to those who appreciate bold aesthetics.
Cons
- Limited Wind Protection: As a naked bike, the Super Duke offers minimal wind protection, which may not be ideal for long highway rides.
- Stiff Ride: The sport-oriented suspension setup can feel harsh on uneven surfaces, which may not suit all riders' preferences.
- Fuel Range: With a fuel capacity of only 15 liters, longer trips may require more frequent refueling stops compared to touring-oriented motorcycles.
Technical details
Source specification data
- Make
- KTM
- Model
- 990 Super Duke Orange
- Category
- Naked bike
- Starter
- Electric
- Color Options
- Orange
- Power
- 118.00 HP (86.1 kW)) @ 9000 RPM
- Clutch
- Wet multi-disc clutch, operated hydraulically
- Torque
- 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM
- Gearbox
- 6-speed
- Ignition
- Kokusan digital 4K-3A
- Fuel System
- Carburettor. Keihin MX FCR 41
- Bore X Stroke
- 101.0 x 62.4 mm (4.0 x 2.5 inches)
- Compression
- 11.5:1
- Displacement
- 999.00 ccm (60.96 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Lubrication System
- Pressure lubrication
- Transmission Type Final Drive
- Chain
- Dry Weight
- 184.0 kg (405.7 pounds)
- Seat Height
- 855 mm (33.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.00 litres (3.96 gallons)
- Overall Width
- 990 mm (39.0 inches)
- Overall Height
- 990 mm (39.0 inches)
- Ground Clearance
- 165 mm (6.5 inches)
- Power Weight Ratio
- 0.6413 HP/kg
- Rake
- 23.5°
- Trail
- 103 mm (4.1 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Chromium-molybdenum, powder-coated
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. 1-piston caliper
- Front Brakes
- Double disc. 4-piston caliper
- Rear Suspension
- WP - Monoshock
- Front Suspension
- WP-USD 48 mm (1.89´)
- Rear Wheel Travel
- 335 mm (13.2 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
