1974Classic

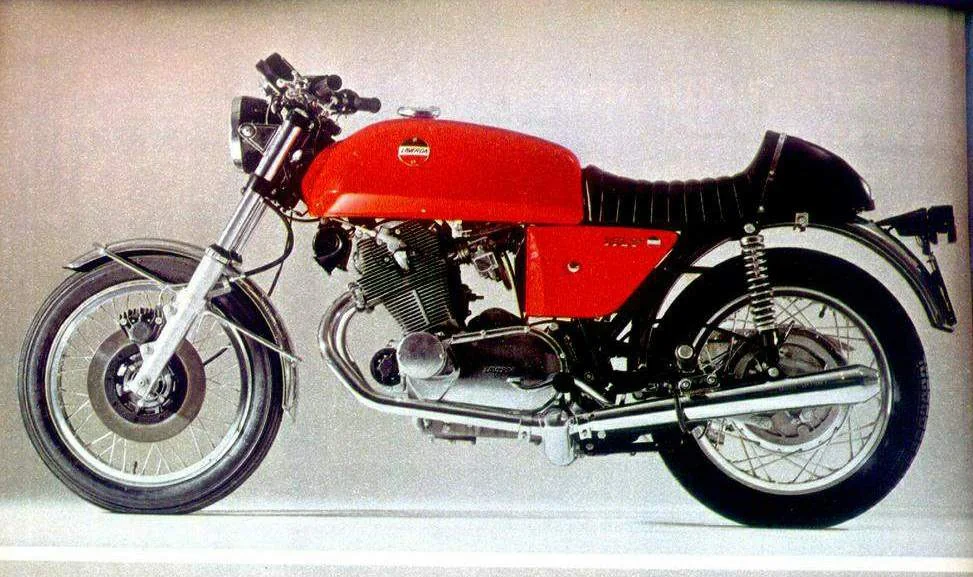

Laverda 750 SF 2
Key specifications
Engine
744 cc
Power
65 HP
Weight
215 kg
Fuel type
petrol
Transmission
5-speed
Seat height
31 mm
Front brakes
Double disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Laverda
- Model
- 750 SF 2
- Category
- Sport
- Power
- 65.00 HP (47.4 kW)) @ 7000 RPM
- Clutch
- Wet plate
- Max Rpm
- 7500
- Gearbox
- 5-speed
- Ignition
- points
- Fuel System
- Carburettor. DellÓrto
- Bore X Stroke
- 80.0 x 74.0 mm (3.1 x 2.9 inches)
- Compression
- 9.7:1
- Displacement
- 743.90 ccm (45.39 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Exhaust System
- dual chrome exhaust
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 215.0 kg (474.0 pounds)
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Ground Clearance
- 190 mm (7.5 inches)
- Power Weight Ratio
- 0.3023 HP/kg
- Rake
- 28.0°
- Trail
- 82 mm (3.2 inches)
- Frame Type
- Steel
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Double disc
