Back to Bike FinderYears: 2006
2006Minibike

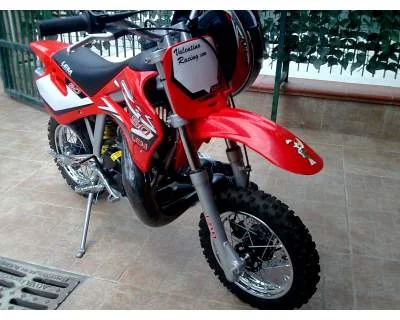

Lem CX2
Key specifications
Engine
50 cc
Power
3 HP
Torque
2 Nm
Weight
34 kg
Fuel type
petrol
Fuel capacity
0.5 L
Transmission
Automatic
Seat height
24 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Lem
- Model
- CX2
- Category
- Minibike-cross
- Power
- 3.20 HP (2.3 kW))
- Clutch
- Centrifugal wet
- Torque
- 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs)
- Gearbox
- Automatic
- Displacement
- 49.80 ccm (3.04 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- 3% mixture
- Valves Per Cylinder
- 1
- Transmission Type Final Drive
- Chain
- Dry Weight
- 34.0 kg (75.0 pounds)
- Seat Height
- 605 mm (23.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 2.00 litres (0.53 gallons)
- Overall Length
- 1,300 mm (51.2 inches)
- Ground Clearance
- 221 mm (8.7 inches)
- Power Weight Ratio
- 0.0941 HP/kg
- Frame Type
- Oval steel tube
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Brakes Diameter
- 90 mm (3.5 inches)
- Front Brakes Diameter
- 160 mm (6.3 inches)
