Back to Bike FinderYears: 2021
2021Other

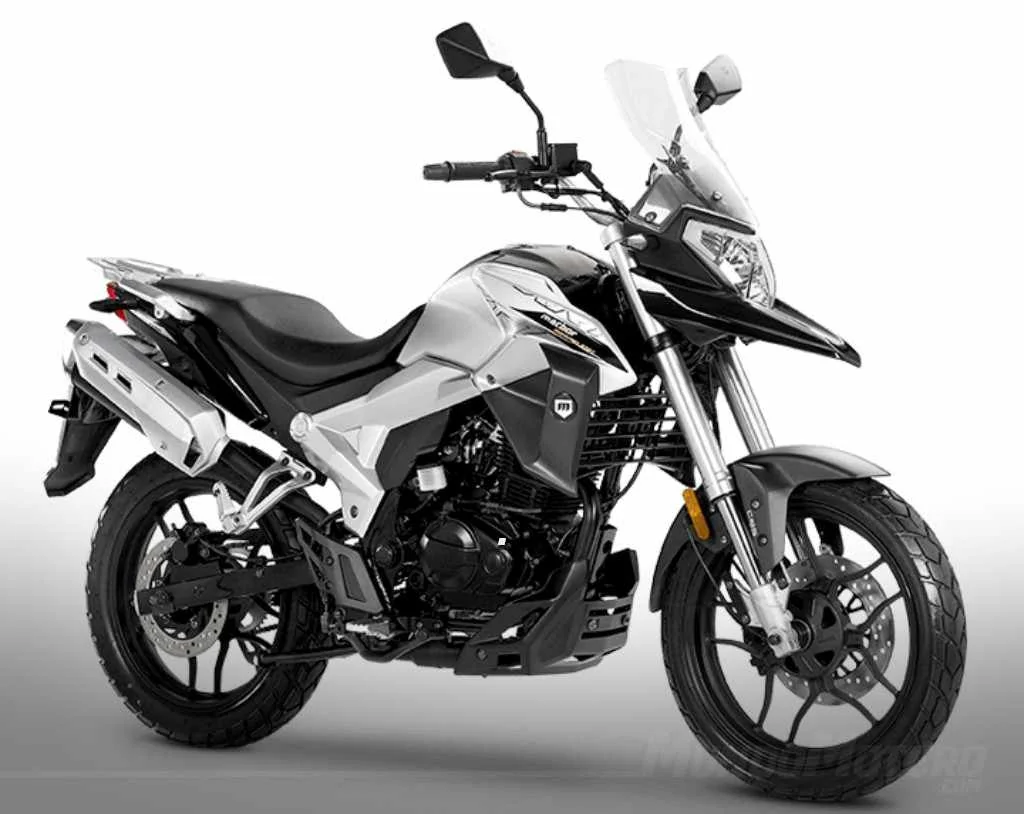

Macbor Montana XR1
Key specifications
Engine
125 cc
Weight
138 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. Combines braking system
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Macbor
- Model
- Montana XR1
- Category
- Sport touring
- Starter
- Electric
- Comments
- Spanish brand.
- Instruments
- Digital
- Color Options
- Yellow, White, Blue, Brown
- Gearbox
- 5-speed
- Ignition
- ECU
- Fuel System
- Injection. Delphi
- Bore X Stroke
- 52.4 x 57.8 mm (2.1 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 124.7 ccm (7.61 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 138.0 kg (304.2 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 865 mm (34.1 inches)
- Overall Height
- 1205 mm (47.4 inches)
- Overall Length
- 2090 mm (82.3 inches)
- Ground Clearance
- 170 mm (6.7 inches)
- Wheels
- Wire spoked
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. Combines braking system
- Rear Suspension
- Dual shocks
- Front Suspension
- Telescopic fork
Available colors
YellowWhiteBlueBrown
