Back to Bike FinderYears: 2004
2004Minibike

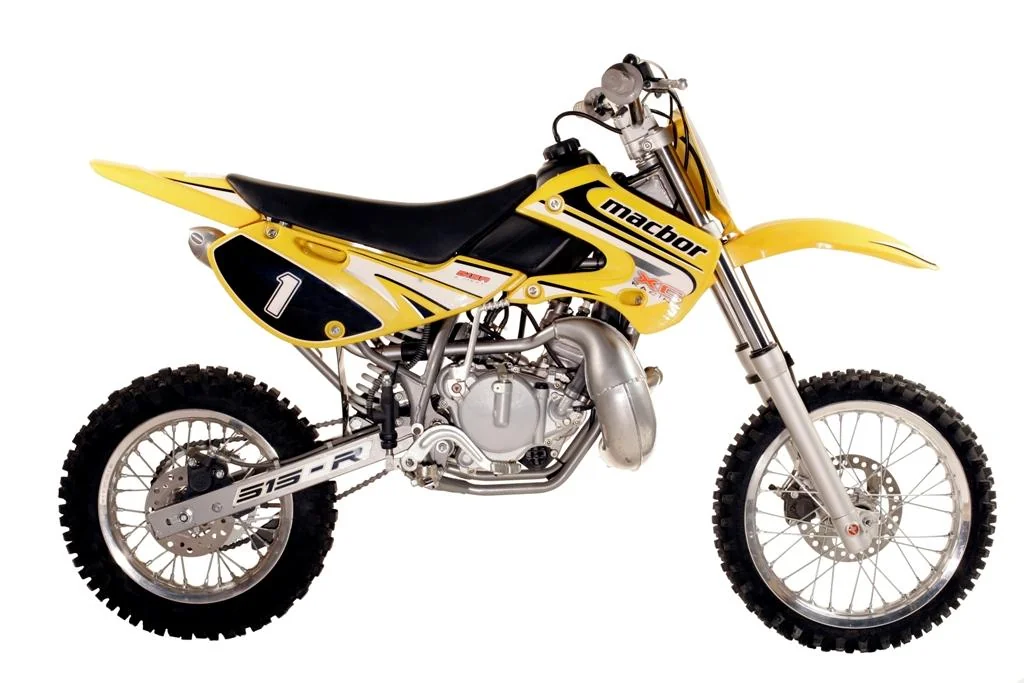

Macbor XC 515 R 6v
Key specifications
Engine
50 cc
Weight
55 kg
Fuel type
petrol
Fuel capacity
1.0 L
Transmission
6-speed
Seat height
29 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Macbor
- Model
- XC 515 R 6v
- Category
- Minibike-cross
- Gearbox
- 6-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.8 mm (1.5 x 1.6 inches)
- Displacement
- 49.93 ccm (3.05 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Dry Weight
- 55.0 kg (121.3 pounds)
- Seat Height
- 740 mm (29.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 3.90 litres (1.03 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 910 mm (35.8 inches)
- Overall Length
- 1,580 mm (62.2 inches)
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic Shock Absorber
- Front Suspension
- Hydraulic
- Rear Wheel Travel
- 200 mm (7.9 inches)
- Front Wheel Travel
- 190 mm (7.5 inches)
