2007Scooter

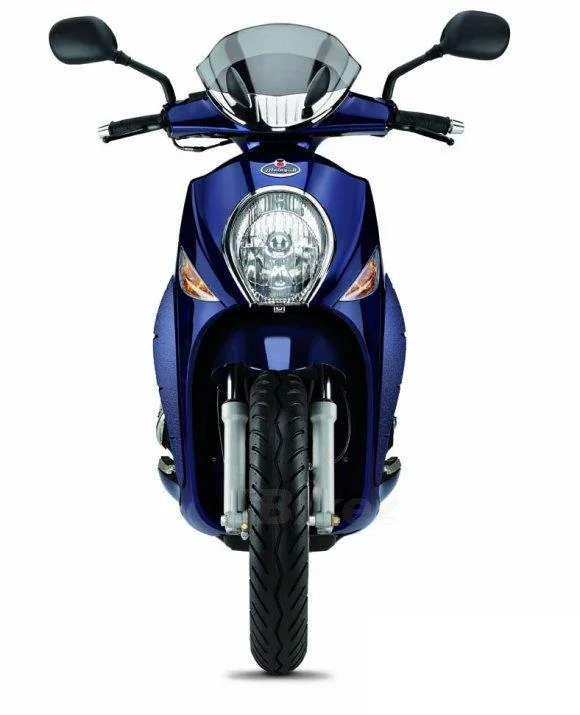

Malaguti Ciak Master 125
Key specifications
Engine
124 cc
Torque
9 Nm
Weight
117 kg
Fuel type
petrol
Fuel capacity
2.1 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Malaguti
- Model
- Ciak Master 125
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Silver, royal blue, dark blue, tTitanium
- Clutch
- Automatic centrifugal dry clutch
- Torque
- 9.00 Nm (0.9 kgf-m or 6.6 ft.lbs) @ 6000 RPM
- Gearbox
- Automatic
- Fuel System
- Carburettor
- Bore X Stroke
- 52.4 x 57.8 mm (2.1 x 2.3 inches)
- Compression
- 9.6:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Catalyst exhaust system
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Belt
- Dry Weight
- 117.0 kg (257.9 pounds)
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 8.00 litres (2.11 gallons)
- Overall Width
- 725 mm (28.5 inches)
- Overall Height
- 1,200 mm (47.2 inches)
- Overall Length
- 2,020 mm (79.5 inches)
- Rear Tyre
- 110/80-16
- Frame Type
- Tubular steel frame split at the footboard level
- Front Tyre
- 100/80-16
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Swinging engine and 2 hydraulic shock absorbers
- Front Suspension
- Telescopic hydraulic fork
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 230 mm (9.1 inches)
Available colors
Silverroyal bluedark bluetTitanium
