2005Scooter

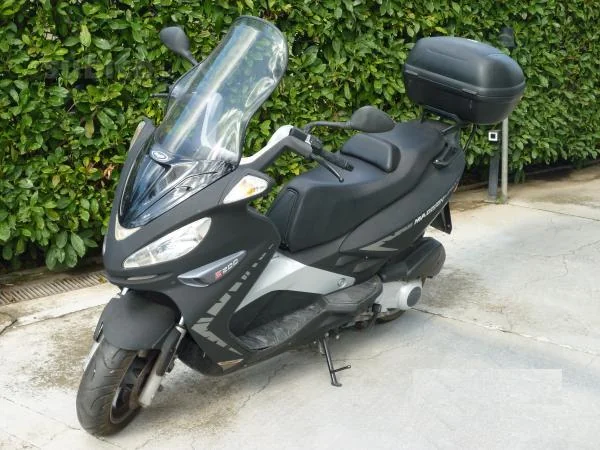

Malaguti Madison 200
Key specifications
Engine
198 cc
Power
19 HP
Torque
18 Nm
Weight
150 kg
Fuel type
petrol
Fuel capacity
3.2 L
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- Madison 200
- Category
- Scooter
- Starter
- Electric
- Power
- 19.44 HP (14.2 kW)) @ 8750 RPM
- Torque
- 17.50 Nm (1.8 kgf-m or 12.9 ft.lbs) @ 6750 RPM
- Fuel System
- Carburettor
- Bore X Stroke
- 72.0 x 48.6 mm (2.8 x 1.9 inches)
- Compression
- 11.0:1
- Displacement
- 198.00 ccm (12.08 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 150.0 kg (330.7 pounds)
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Power Weight Ratio
- 0.1296 HP/kg
- Rear Tyre
- 130/60-13
- Frame Type
- High resistance braced tubular steel frame
- Front Tyre
- 120/70-13
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Rear suspension by swinging engine and 2 hydraulic shock absorbers
- Front Suspension
- Front suspension by hydraulic fork, ø 36 mm stanchions
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
