Back to Bike FinderYears: 2005
2005Scooter

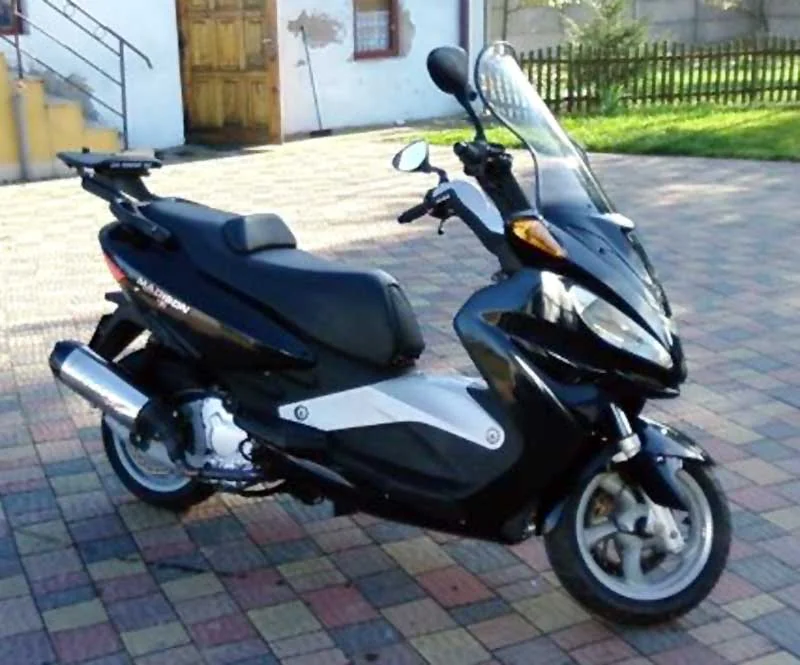

Malaguti Madison 400
Key specifications
Engine
383 cc
Power
31 HP
Torque
34 Nm
Weight
178 kg
Fuel type
petrol
Fuel capacity
3.2 L
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- Madison 400
- Category
- Scooter
- Starter
- Electric
- Power
- 30.84 HP (22.5 kW)) @ 7000 RPM
- Clutch
- Automatic centrifugal dry clutch
- Torque
- 34.00 Nm (3.5 kgf-m or 25.1 ft.lbs) @ 5750 RPM
- Ignition
- Digital electronic ignition
- Fuel System
- Carburettor
- Bore X Stroke
- 86.0 x 66.0 mm (3.4 x 2.6 inches)
- Compression
- 10.5:1
- Displacement
- 383.00 ccm (23.37 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 178.0 kg (392.4 pounds)
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Power Weight Ratio
- 0.1733 HP/kg
- Rear Tyre
- 140/60-13
- Frame Type
- High resistance braced tubular steel frame
- Front Tyre
- 120/70-13
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- By swinging engine and 2 hydraulic shock absorbers
- Front Suspension
- Front suspension by hydraulic fork, ø 36 mm stanchions
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
