Back to Bike FinderYears: 2006
2006Scooter

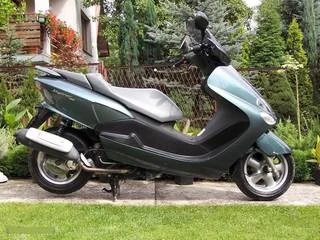

MBK Skyliner LTD
Key specifications
Engine
124 cc
Power
11 HP
Torque
9 Nm
Weight
134 kg
Fuel type
petrol
Fuel capacity
1.7 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- MBK
- Model
- Skyliner LTD
- Category
- Scooter
- Starter
- Electric
- Power
- 11.39 HP (8.3 kW)) @ 9000 RPM
- Clutch
- Automatic centrifugal
- Torque
- 9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8500 RPM
- Ignition
- Electronic (C.D.I.)
- Fuel System
- Carburettor. CVK24
- Bore X Stroke
- 53.7 x 54.8 mm (2.1 x 2.2 inches)
- Compression
- 11.0:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Dry Weight
- 134.0 kg (295.4 pounds)
- Seat Height
- 774 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.50 litres (1.72 gallons)
- Overall Width
- 745 mm (29.3 inches)
- Overall Height
- 1,285 mm (50.6 inches)
- Overall Length
- 2,030 mm (79.9 inches)
- Ground Clearance
- 102 mm (4.0 inches)
- Power Weight Ratio
- 0.0850 HP/kg
- Rear Tyre
- 130/70-12
- Front Tyre
- 120/70-12
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic unit swing
- Front Suspension
- Hydraulic telescopic fork
- Rear Brakes Diameter
- 190 mm (7.5 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
