Back to Bike FinderYears: 2012
2012Cruiser

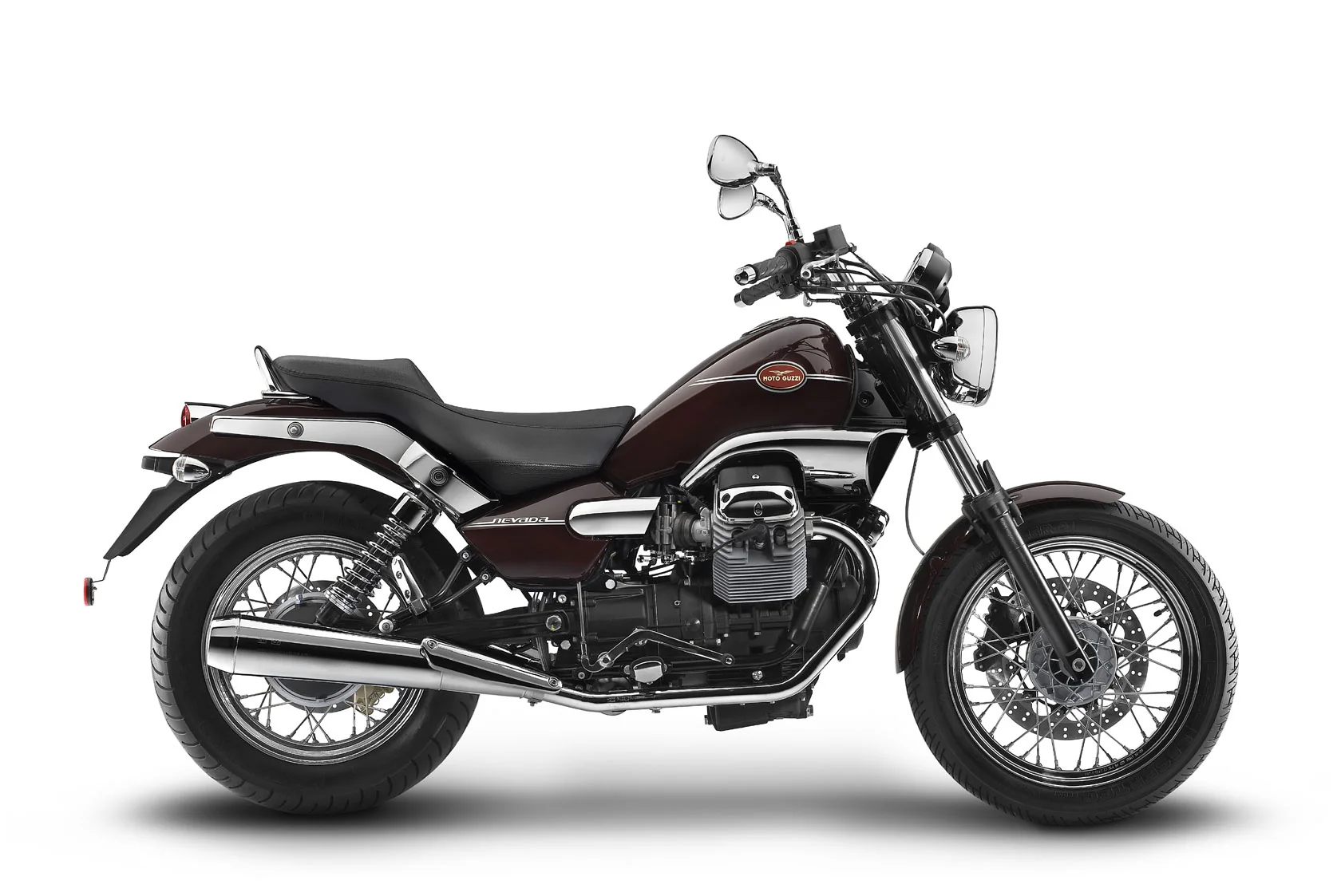

Moto Guzzi Nevada 750 Classic
Key specifications
Engine
744 cc
Power
48 HP
Torque
55 Nm
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Nevada 750 Classic
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Black, white, burgundy
- Power
- 48.00 HP (35.0 kW)) @ 6800 RPM
- Clutch
- Single disc, dry, with cush drive
- Torque
- 54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM
- Gearbox
- 5-speed
- Ignition
- W
- 15
- C
- electronic digital ignition with inductive spark
- Engine Type
- V
- -
- Twin
- . 2 overhead valves with light alloy push-rod
- Fuel System
- Injection
- .
- Weber Weber
- -
- C
- electronic injection
- Bore X Stroke
- 80.0 x 74.0 mm (3.1 x 2.9 inches)
- Compression
- 9.6:1
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Emission Details
- three-way catalyzer with Lambda sensor
- Lubrication System
- By lobes with pressure pump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 825 mm (32.5 inches)
- Overall Height
- 1,068 mm (42.0 inches)
- Overall Length
- 2,166 mm (85.3 inches)
- Ground Clearance
- 290 mm (11.4 inches)
- Reserve Fuel Capacity
- 3.56 litres (0.94 gallons)
- Weight Incl Oil Gas Etc
- 184.0 kg (405.7 pounds)
- Rake
- 27.5°
- Trail
- 138 mm (5.4 inches)
- Rear Tyre
- 130/90-16
- Frame Type
- Detachable tubular duplex cradle in special high-strengh steel
- Front Tyre
- 100/90-18
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks
- Front Suspension
- Marzocchi hydraulic telescopic fork
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Blackwhiteburgundy
