Back to Bike FinderYears: 2006
2006Cruiser

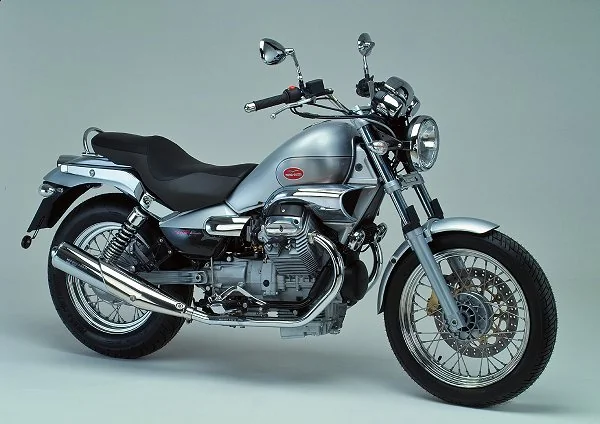

Moto Guzzi Nevada Classic 750 IE
$8,990
Key specifications
Engine
744 cc
Power
46 HP
Torque
57 Nm
Weight
176 kg
Fuel type
petrol
Fuel capacity
3.7 L
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Nevada Classic 750 IE
- Price
- S
- $ 8990.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Grey, black
- Power
- 46.00 HP (33.6 kW)) @ 6600 RPM
- Clutch
- Single disc, dry with cush drive
- Torque
- 56.95 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 3000 RPM
- Ignition
- Magneti Marelli
- electronic digital
- Digiplex
- 25
- Fuel System
- Injection
- .
- Weber
- -
- Marelli
- electronic injection
- Bore X Stroke
- 80.0 x 74.0 mm (3.1 x 2.9 inches)
- Compression
- 9.6:1
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Steel with 2 polished steel mufflers
- Lubrication System
- Wet sump, forced oil, cartridge filter
- Valves Per Cylinder
- 2
- Dry Weight
- 176.0 kg (388.0 pounds)
- Seat Height
- 762 mm (30.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 874 mm (34.4 inches)
- Overall Height
- 1,181 mm (46.5 inches)
- Overall Length
- 2,210 mm (87.0 inches)
- Ground Clearance
- 191 mm (7.5 inches)
- Power Weight Ratio
- 0.2614 HP/kg
- Rake
- 28.0°
- Trail
- 135 mm (5.3 inches)
- Rear Tyre
- 130/90-16
- Frame Type
- Detachable tubular duplex cradle
- Front Tyre
- 110/90-18
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound
- Front Suspension
- Marzocchi 40 mm hydraulic
- Rear Wheel Travel
- 74 mm (2.9 inches)
- Front Wheel Travel
- 137 mm (5.4 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Greyblack
