2009Naked

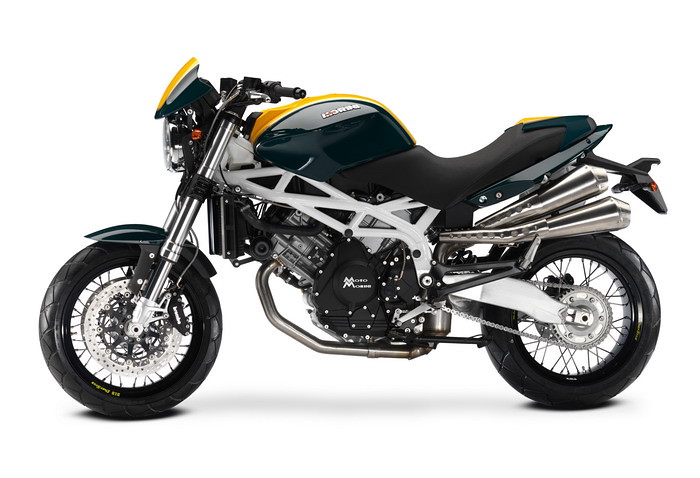

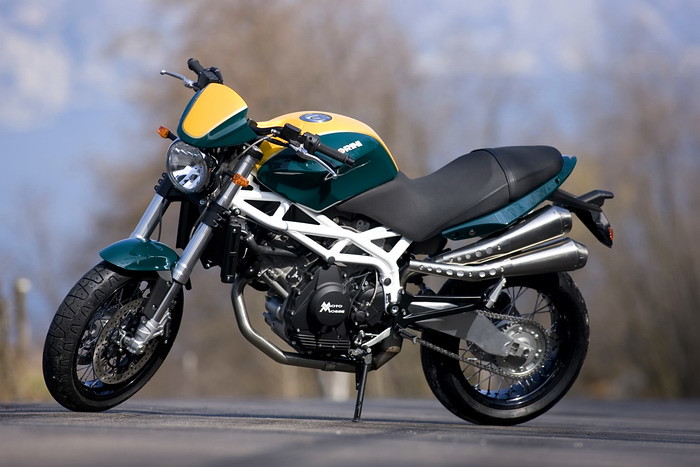

Moto Morini 1200 Sport
Key specifications
Engine
1151 cc
Power
94 HP
Torque
100 Nm
Weight
229 kg
Fuel type
petrol
Fuel capacity
6.1 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- 1200 Sport
- Category
- Naked bike
- Color Options
- Black, Red
- Power
- 93.87 HP (68.5 kW)) @ 7800 RPM
- Clutch
- Double disk, dry
- Torque
- 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6000 RPM
- Gearbox
- 6-speed
- Ignition
- A
- , á-n type; 2 45 mm throttle bodies,
- P
- 162 injectors,
- Lambda
- control, twin spark ignition
- Fuel System
- Injection
- .
- Weber
- -
- Marelli
- electronic fuel injection with stepper motor control
- Bore X Stroke
- 95.0 x 81.2 mm (3.7 x 3.2 inches)
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Lubrication System
- Splash
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 229.0 kg (504.9 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 23.00 litres (6.08 gallons)
- Overall Height
- 1,160 mm (45.7 inches)
- Overall Length
- 2,195 mm (86.4 inches)
- Ground Clearance
- 185 mm (7.3 inches)
- Power Weight Ratio
- 0.4099 HP/kg
- Rake
- 25.0°
- Trail
- 120 mm (4.7 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Tubular cradle, high tensile steel
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
- Front Suspension
- Telescopic
- hydraulic fork with 45 mm and
- N
- surface treatment, preload adjustable
- Rear Wheel Travel
- 110 mm (4.3 inches)
- Front Wheel Travel
- 110 mm (4.3 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
BlackRed
