1936Sportbike

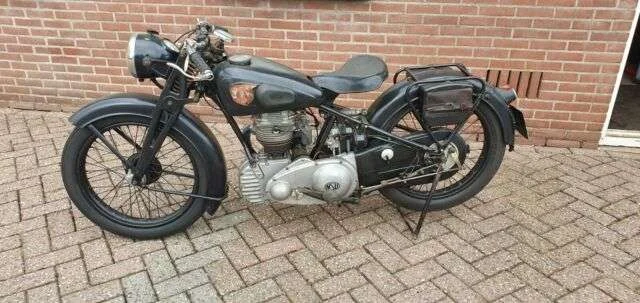

NSU 601 OSB
Key specifications
Engine
562 cc
Power
26 HP
Weight
150 kg
Fuel type
petrol
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- NSU
- Model
- 601 OSB
- Category
- Sport
- Starter
- Kick
- Power
- 26.00 HP (19.0 kW)) @ 4950 RPM
- Fuel System
- Carburettor. Amal
- Bore X Stroke
- 85.0 x 99.0 mm (3.3 x 3.9 inches)
- Displacement
- 562.00 ccm (34.29 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 150.0 kg (330.7 pounds)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1,000 mm (39.4 inches)
- Overall Length
- 2,200 mm (86.6 inches)
- Power Weight Ratio
- 0.1733 HP/kg
- Seat
- Single
- Rear Tyre
- 3.50-19
- Front Tyre
- 3.50-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
