Back to Bike FinderYears: 2020
2020Minibike

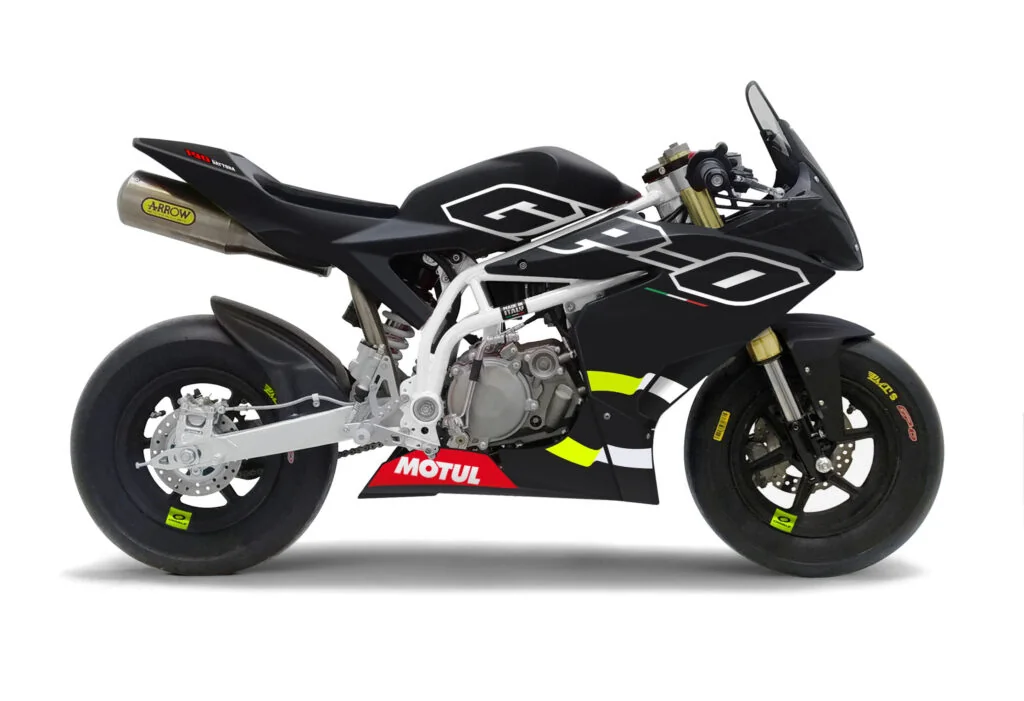

Ohvale 110 4 Speed
Key specifications
Engine
113 cc
Power
11 HP
Fuel type
petrol
Transmission
4-speed
Front brakes
Single disc. Monoblock radial caliper with 4 pistons.
Rear brakes
Single disc. Radial caliper with 2 pistons.
Technical details
Source specification data
- Make
- Ohvale
- Model
- 110 4 Speed
- Category
- Minibike-sport
- Starter
- Kick
- Comments
- Intended for children from 9 years.
- Color Options
- White
- Power
- 11.00 HP (8.0 kW))
- Clutch
- Wet clutch
- Gearbox
- 4-speed
- Fuel System
- Carburettor. Mikuni Ø 24
- Bore X Stroke
- 54.0 x 49.5 mm (2.1 x 1.9 inches)
- Displacement
- 113.00 ccm (6.90 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Exhaust
- pipe in stainless steel.
- Under
- saddle single silencer
- Arrow
- in titanium
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Oil Capacity
- 0.80 litres (0.05 quarts)
- Frame Type
- Tubular steel trellis
- Rear Brakes
- Single
- disc.
- Radial
- caliper with 2 pistons.
- Front Brakes
- Single
- disc.
- Monoblock
- radial caliper with 4 pistons.
- Rear Suspension
- Aluminum
- swing-arm.
- Monoshock
- with piggy-back.
- Fully
- adjustable: hydraulic compression and rebound damping, spring preload
- Front Suspension
- 33mm upside down fork
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 180 mm (7.1 inches)
Available colors
White
