2007Scooter

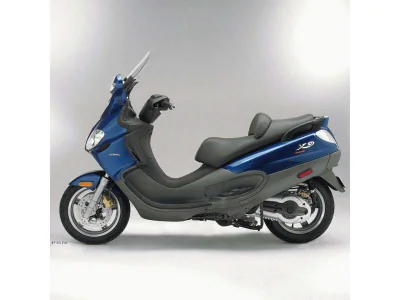

Piaggio X9 Evolution 500
Key specifications
Engine
460 cc
Power
39 HP
Torque
43 Nm
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Double disc. Bremo
Rear brakes
Single disc. bremo
Technical details
Source specification data
- Make
- Piaggio
- Model
- X9 Evolution 500
- Category
- Scooter
- Starter
- Electric
- Power
- 39.00 HP (28.5 kW)) @ 7500 RPM
- Torque
- 43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- Inductive
- Top Speed
- 158.0 km/h (98.2 mph)
- Bore X Stroke
- 92.0 x 69.0 mm (3.6 x 2.7 inches)
- Compression
- 10.5:1
- Displacement
- 460.00 ccm (28.07 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Separate with automatic mixer
- Transmission Type Final Drive
- Belt
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.00 litres (3.96 gallons)
- Overall Width
- 880 mm (34.6 inches)
- Overall Length
- 2,140 mm (84.3 inches)
- Weight Incl Oil Gas Etc
- 213.0 kg (469.6 pounds)
- Rear Tyre
- 150/70-14
- Frame Type
- Double cradle, high strength steel tube
- Front Tyre
- 120/70-14
- Rear Brakes
- Single disc. bremo
- Front Brakes
- Double disc. Bremo
- Rear Suspension
- Two dual effect hydraulic dampers, helic springs, adjustable to four positions of pre-load, stroke 90mm
- Front Suspension
- Telescopic hydraulic fork, stanchions Ø 41 mm, stroke 90 mm
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
