2019Scooter

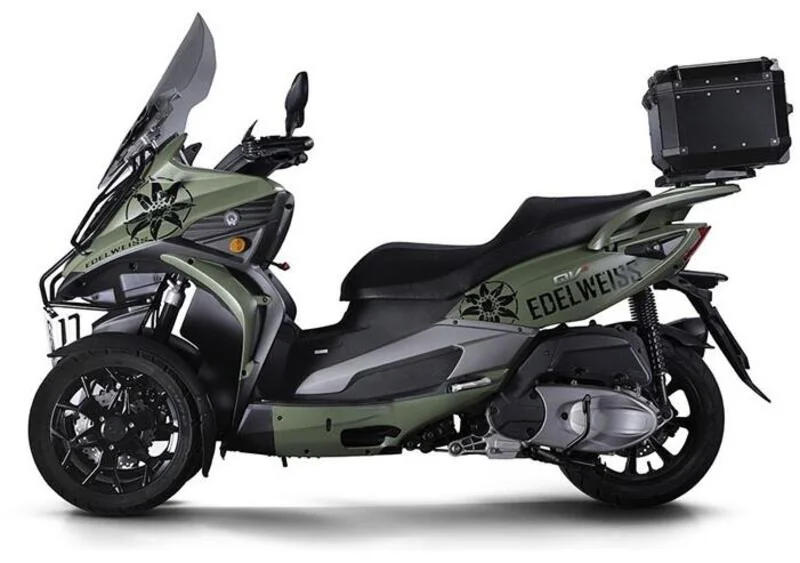

Quadro 3 Edelweiss
Key specifications
Engine
346 cc
Power
28 HP
Torque
32 Nm
Fuel type
petrol
Fuel capacity
3.5 L
Transmission
Automatic
Seat height
32 mm
Front brakes
Double disc. Hydraulic.
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- Quadro
- Model
- 3 Edelweiss
- Category
- Scooter
- Starter
- Electric
- Comments
- Windshield. Two front wheels.
- Electrical
- 12 Volt
- Color Options
- Green Alps
- Carrying Capacity
- Top box
- Power
- 28.43 HP (20.8 kW)) @ 7000 RPM
- Clutch
- Automatic dry centrifugal
- Torque
- 31.80 Nm (3.2 kgf-m or 23.5 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- electronic
- Fuel System
- Injection
- Bore X Stroke
- 82.0 x 65.6 mm (3.2 x 2.6 inches)
- Displacement
- 346.00 ccm (21.11 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 4
- Fuel Consumption
- 4.10 litres/100 km (24.4 km/l or 57.37 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Trochoid pump, wet-sump
- Transmission Type Final Drive
- Belt
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.20 litres (3.49 gallons)
- Overall Width
- 811 mm (31.9 inches)
- Overall Length
- 2,270 mm (89.4 inches)
- Weight Incl Oil Gas Etc
- 220.0 kg (485.0 pounds)
- Rake
- 19.0°
- Rear Tyre
- 140/70-15
- Frame Type
- Steel tubes
- Front Tyre
- 110/80-14
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Double disc. Hydraulic.
- Rear Suspension
- Dual dumpers
- Front Suspension
- HTS Hydraulic Tilting System
- Rear Wheel Travel
- 100 mm (3.9 inches)
- Rear Brakes Diameter
- 256 mm (10.1 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Green Alps
