Back to Bike FinderYears: 2020
2020Sportbike

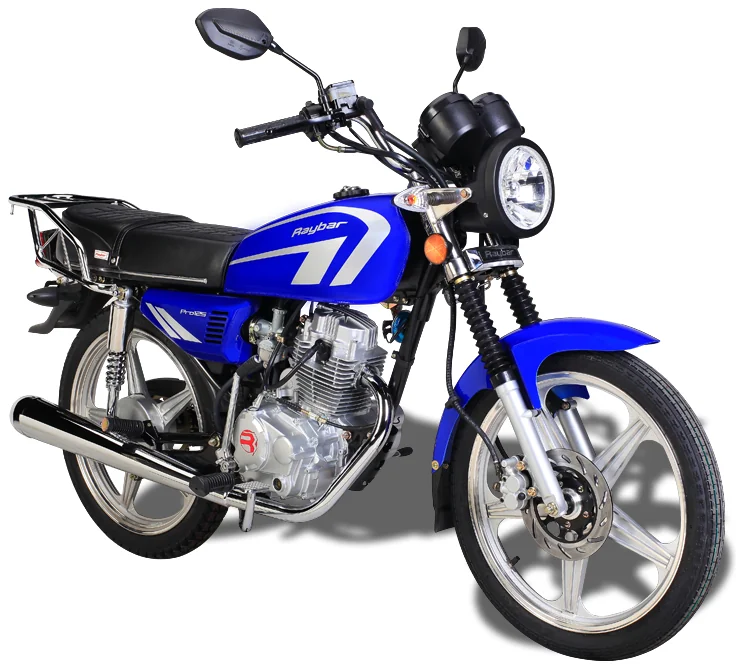

Raybar Pro 125
Key specifications
Engine
125 cc
Power
10 HP
Torque
9 Nm
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Raybar
- Model
- Pro 125
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Chinese brand.
- Color Options
- Bold Black, Racing Red, Blazing Blue
- Power
- 9.7 HP (7.1 kW)) @ 8000 RPM
- Clutch
- Wet multiplate
- Torque
- 8.6 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 7500 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Top Speed
- 95.0 km/h (59.0 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor. PZ20
- Bore X Stroke
- 56.5 x 49.5 mm (2.2 x 1.9 inches)
- Compression
- 9.0:1
- Displacement
- 125.0 ccm (7.63 cubic inches)
- Cooling System
- Air
- Fuel Consumption
- 2.10 litres/100 km (47.6 km/l or 112.01 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain (final drive)
- Fuel Capacity
- 9.00 litres (2.38 US gallons)
- Overall Width
- 720 mm (28.3 inches)
- Overall Height
- 1015 mm (40.0 inches)
- Overall Length
- 1970 mm (77.6 inches)
- Ground Clearance
- 120 mm (4.7 inches)
- Weight Incl Oil Gas Etc
- 100.0 kg (220.5 pounds)
- Rear Tyre
- 2.75-18
- Front Tyre
- 2.50-18
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Spring Coil
- Front Suspension
- Telescopic
Available colors
Bold BlackRacing RedBlazing Blue
