Back to Bike FinderYears: 2016
2016Off-road

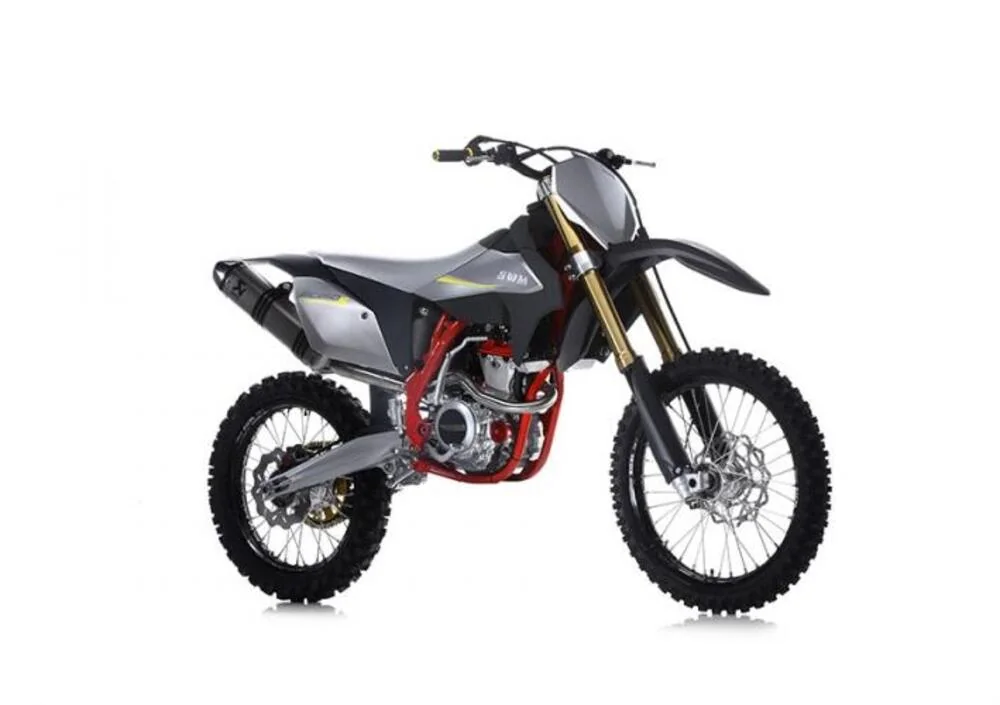

SWM MC 250 S
Key specifications
Engine
249 cc
Weight
103 kg
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
5-speed
Seat height
38 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- MC 250 S
- Category
- Cross-motocross
- Starter
- Kick
- Comments
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Cooperates
- with
- Chinese Shineray
- .
- Color Options
- Grey/red/yellow/black
- Clutch
- Wet, multiplate type, hydraulic control
- Gearbox
- 5-speed
- Ignition
- electronic
- Fuel System
- Injection. Keihin
- Bore X Stroke
- 79.0 x 50.7 mm (3.1 x 2.0 inches)
- Displacement
- 248.80 ccm (15.18 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Dry sump with oil pump rotor and cartridge filter
- Transmission Type Final Drive
- Chain
- Dry Weight
- 103.0 kg (227.1 pounds)
- Seat Height
- 963 mm (37.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.20 litres (1.90 gallons)
- Wheels
- Wire spoked
- Rear Tyre
- 100/90-19
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 80/100-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Kayba monoshock absorber with adjustment
- Front Suspension
- Kayba Upside
- -
- Down
- fork with damping adjustment
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Grey/red/yellow/black
