Back to Bike FinderYears: 2020 · 2016
2023Off-road

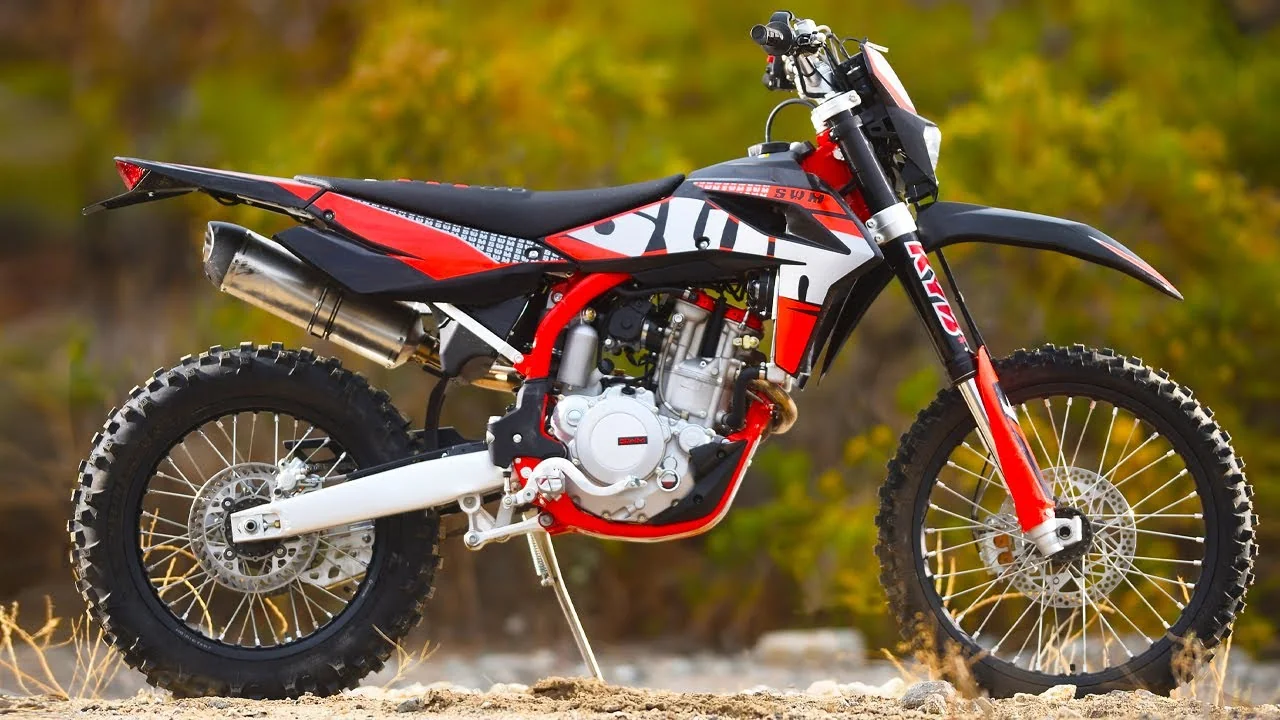

SWM RS500R
Key specifications
Weight
116 kg
Fuel type
petrol
Fuel capacity
2.0 L
Transmission
6-speed
Seat height
38 mm
Front brakes
Single disc. Brembo, hydraulic control and floating caliper
Rear brakes
Single disc. Brembo, hydraulic control and floating caliper
Technical details
Source specification data
- Make
- SWM
- Model
- RS500R
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Red/black
- Clutch
- Wet, multiplate
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 97.0 x 67.5 mm (3.8 x 2.7 inches)
- Compression
- 12.9:1
- Cooling System
- Liquid
- Emission Details
- Euro 4
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 116.0 kg (255.7 pounds)
- Seat Height
- 955 mm (37.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.50 litres (1.98 US gallons)
- Overall Width
- 820 mm (32.3 inches)
- Overall Height
- 1285 mm (50.6 inches)
- Overall Length
- 2240 mm (88.2 inches)
- Ground Clearance
- 300 mm (11.8 inches)
- Power Weight Ratio
- 0.2891 HP/kg
- Trail
- 106 mm (4.2 inches)
- Rear Tyre
- 140/80-18
- Frame Type
- High strength steel tubular
- Front Tyre
- 90/90-21
- Rear Brakes
- Single
- disc.
- Brembo
- , hydraulic control and floating caliper
- Front Brakes
- Single
- disc.
- Brembo
- , hydraulic control and floating caliper
- Rear Suspension
- A
- .
- Progressive
- “soft damp” single hydraulic shock absorber, spring preload, compression and rebound adjustements
- Front Suspension
- A
- .
- Upside
- down telescopic hydraulic fork with advanced axle, compression and rebound dumping adjustment
- Rear Wheel Travel
- 296 mm (11.7 inches)
- Front Wheel Travel
- 295 mm (11.6 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Red/black
