Back to Bike FinderYears: 2014
2014Scooter

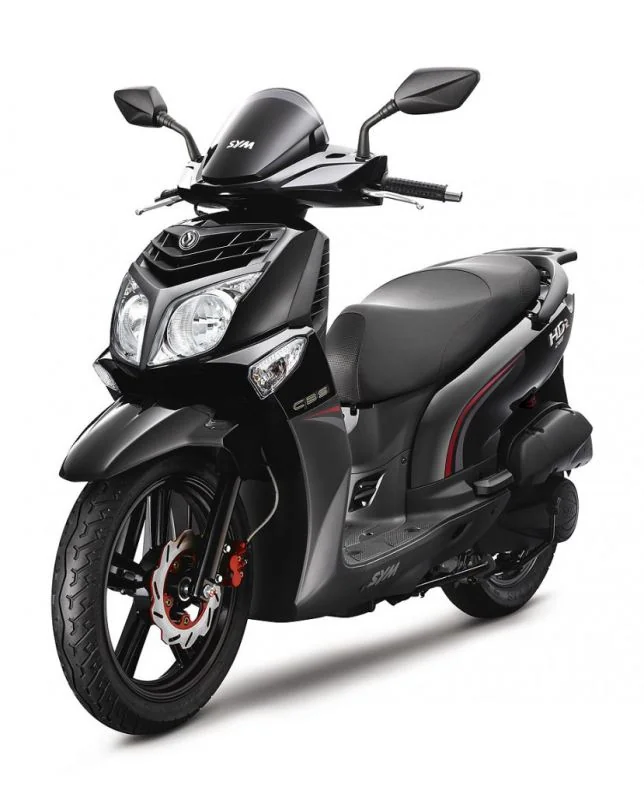

Sym HD 2 170
Key specifications
Engine
171 cc
Power
15 HP
Torque
15 Nm
Weight
145 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Sym
- Model
- HD 2 170
- Category
- Scooter
- Starter
- Electric
- Comments
- Made in Taiwan.
- Electrical
- 12 V 8Ah (MF) battery.
- Color Options
- Grey, Black, Silver, White
- Power
- 15.29 HP (11.2 kW)) @ 8000 RPM
- Torque
- 15.00 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 7000 RPM
- Gearbox
- Automatic
- Top Speed
- 109.0 km/h (67.7 mph)
- Driveline
- CVT
- Fuel System
- Carburettor
- Displacement
- 171.20 ccm (10.45 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Fuel Consumption
- 2.44 litres/100 km (41.0 km/l or 96.40 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 145.0 kg (319.7 pounds)
- Fuel Capacity
- 5.20 litres (1.37 gallons)
- Overall Width
- 760 mm (29.9 inches)
- Overall Height
- 1,240 mm (48.8 inches)
- Overall Length
- 2,070 mm (81.5 inches)
- Power Weight Ratio
- 0.1054 HP/kg
- Rear Tyre
- 120/80-16
- Frame Type
- Pipe under bone
- Front Tyre
- 100/80-16
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Unit swing arm
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 226 mm (8.9 inches)
Available colors
GreyBlackSilverWhite
