2011Scooter

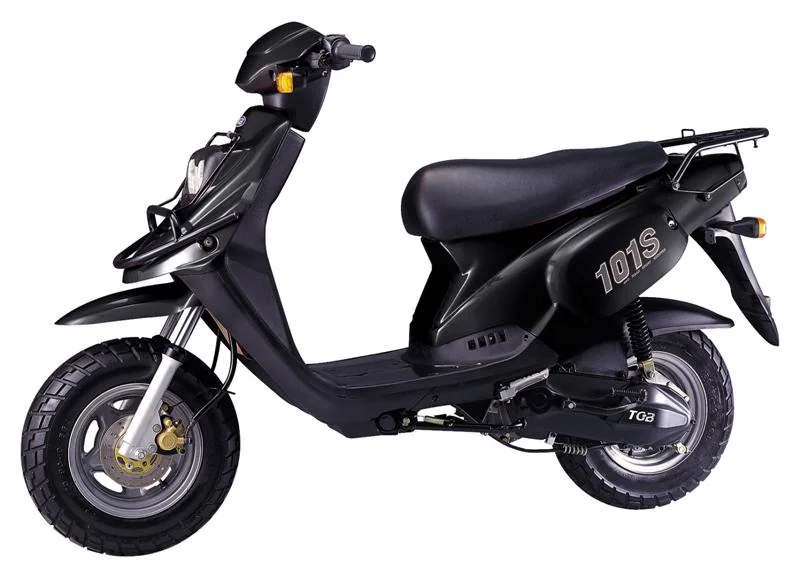

TGB 101S 50
Key specifications
Engine
49 cc
Power
5 HP
Weight
81 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TGB
- Model
- 101S 50
- Category
- Scooter
- Light
- Dual headlights
- Starter
- Electric & kick
- Electrical
- 12 Vot 4 Ah battery
- Instruments
- Analogue
- Color Options
- RED, BLACK, BLUE, SILVER
- Power
- 4.90 HP (3.6 kW)) @ 7500 RPM
- Gearbox
- Automatic
- Ignition
- C.D.I.
- Driveline
- CVT
- Fuel System
- Carburettor
- Bore X Stroke
- 41.0 x 37.4 mm (1.6 x 1.5 inches)
- Compression
- 7.8:1
- Displacement
- 49.30 ccm (3.01 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Seprate oil pump
- Transmission Type Final Drive
- Belt
- Dry Weight
- 81.0 kg (178.6 pounds)
- Fuel Capacity
- 5.10 litres (1.35 gallons)
- Overall Width
- 650 mm (25.6 inches)
- Overall Height
- 1,075 mm (42.3 inches)
- Overall Length
- 1,695 mm (66.7 inches)
- Power Weight Ratio
- 0.0605 HP/kg
- Weight Incl Oil Gas Etc
- 87.0 kg (191.8 pounds)
- Rear Tyre
- 120/70-12
- Frame Type
- Steel
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
Available colors
REDBLACKBLUESILVER
