Back to Bike FinderYears: 2023
2023ATV

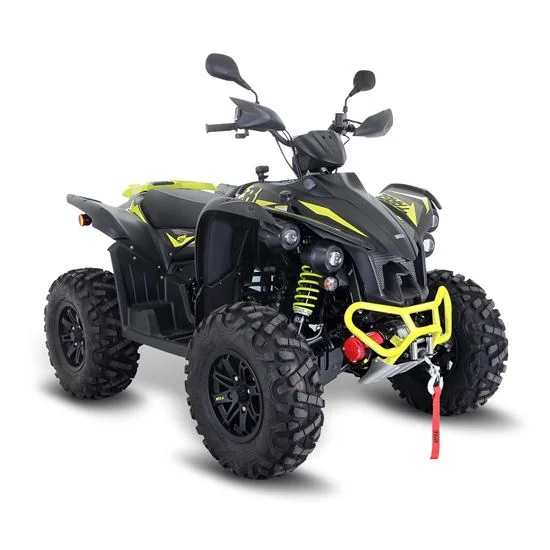

TGB Blade LandMaster 600
Key specifications
Engine
561 cc
Power
43 HP
Torque
54 Nm
Weight
454 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TGB
- Model
- Blade LandMaster 600
- Category
- ATV
- Light
- Full-LED lighting
- Starter
- Electric
- Comments
- Made in Taiwan. Switchable 2 or 4 WD.
- Color Options
- Green
- Factory Warranty
- 5 Year Manufacturer Limited Warranty
- Carrying Capacity
- Rear cargo tray. Front rack.
- Power
- 43.0 HP (31.4 kW)) @ 7000 RPM
- Torque
- 53.5 Nm (5.5 kgf-m or 39.5 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Driveline
- CVT, 2/4 Wheel Drive Selectable
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 95.0 x 79.2 mm (3.7 x 3.1 inches)
- Compression
- 10.2:1
- Displacement
- 561.0 ccm (34.23 cubic inches)
- Cooling System
- Liquid
- Transmission Type Final Drive
- Shaft drive (cardan) (final drive)
- Dry Weight
- 454.0 kg (1,000.9 pounds)
- Seat Height
- 914 mm (36.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 US gallons)
- Overall Width
- 1290 mm (50.8 inches)
- Overall Height
- 1280 mm (50.4 inches)
- Overall Length
- 2550 mm (100.4 inches)
- Ground Clearance
- 320 mm (12.6 inches)
- Power Weight Ratio
- 0.0947 HP/kg
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Independant double A-Arm
- Front Suspension
- Double A-Arm
- Rear Wheel Travel
- 240 mm (9.4 inches)
- Front Wheel Travel
- 220 mm (8.7 inches)
- Rear Brakes Diameter
- 180 mm (7.1 inches)
- Front Brakes Diameter
- 200 mm (7.9 inches)
Available colors
Green
