2006Cruiser

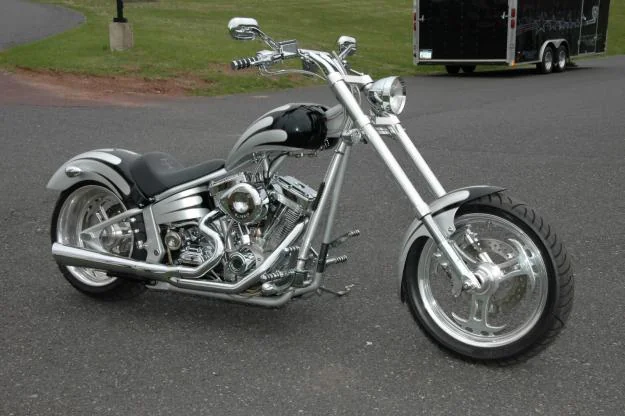

Titan Sidewinder Softail
Key specifications
Engine
1750 cc
Power
112 HP
Torque
121 Nm
Weight
295 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
24 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Titan
- Model
- Sidewinder Softail
- Category
- Custom-cruiser
- Starter
- Electric
- Power
- 112.00 HP (81.8 kW)) @ 5500 RPM
- Torque
- 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 4000 RPM
- Gearbox
- 6-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 101.6 x 113.0 mm (4.0 x 4.5 inches)
- Compression
- 9.8:1
- Displacement
- 1750.00 ccm (106.79 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Fuel Consumption
- 7.35 litres/100 km (13.6 km/l or 32.00 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 2
- Dry Weight
- 294.8 kg (650.0 pounds)
- Seat Height
- 610 mm (24.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.41 litres (4.60 gallons)
- Ground Clearance
- 102 mm (4.0 inches)
- Power Weight Ratio
- 0.3799 HP/kg
- Rake
- 35.0°
- Front Tyre
- 110/90-19
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Dual chromed agusta shocks
- Front Suspension
- inverted forks
- Rear Brakes Diameter
- 292 mm (11.5 inches)
- Front Brakes Diameter
- 330 mm (13.0 inches)
