Back to Bike FinderYears: 2012
2012Off-road

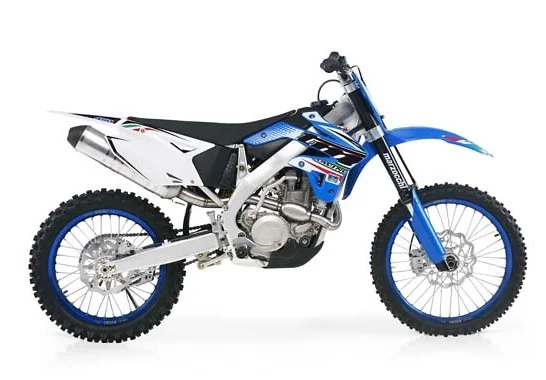

TM Racing EN 530 F
Key specifications
Engine
528 cc
Power
11 HP
Fuel type
petrol
Fuel capacity
2.2 L
Transmission
5-speed
Front brakes
Single disc. Braking wave disk. With Nissin pump and caliper
Rear brakes
Single disc. Braking wave disk. With Nissin pump and caliper
Technical details
Source specification data
- Make
- TM Racing
- Model
- EN 530 F
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Italian brand.
- Color Options
- Blue/white
- Power
- 10.50 HP (7.7 kW))
- Clutch
- Wet, multiplate
- Gearbox
- 5-speed
- Ignition
- Kokusan DCI Electronic with variable advance
- Driveline
- Primary drive: Straight – tooth gear
- Fuel System
- Carburettor
- .
- R
- 41 mm
- Bore X Stroke
- 98.0 x 70.0 mm (3.9 x 2.8 inches)
- Displacement
- 527.70 ccm (32.20 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Dry sump with 2 pumps
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Fuel Capacity
- 8.20 litres (2.17 gallons)
- Wheels
- Spoked. Blue rims
- Rear Tyre
- 140/80-19
- Frame Type
- Perimetral aluminium
- Front Tyre
- 90/90-21
- Rear Brakes
- Single
- disc.
- Braking
- wave disk.
- With Nissin
- pump and caliper
- Front Brakes
- Single
- disc.
- Braking
- wave disk.
- With Nissin
- pump and caliper
- Rear Suspension
- Sachs Boge (optional Ohlins o TM)
- Front Suspension
- Marzocchi USD fork, 50mm
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
Available colors
Blue/white
