2007Off-road

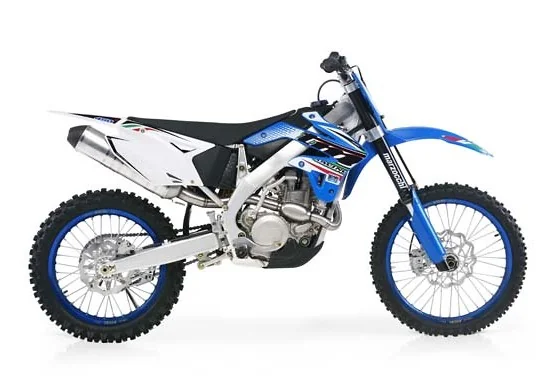

TM Racing MX 530 F
Key specifications
Engine
528 cc
Fuel type
petrol
Fuel capacity
2.1 L
Transmission
5-speed
Front brakes
Single disc. Nissin pump and Brembo caliper
Rear brakes
Single disc. Nissin pump and caliper
Technical details
Source specification data
- Make
- TM Racing
- Model
- MX 530 F
- Category
- Cross-motocross
- Starter
- Kick
- Clutch
- Multiple-disk in oil bath with hydraulic control
- Gearbox
- 5-speed
- Ignition
- Kokusan CDI Electronic with variable advance
- Fuel System
- Carburettor. Keihin FCR 41mm
- Bore X Stroke
- 98.0 x 70.0 mm (3.9 x 2.8 inches)
- Displacement
- 527.70 ccm (32.20 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Dry sump with double rotor pump
- Transmission Type Final Drive
- Chain
- Fuel Capacity
- 8.00 litres (2.11 gallons)
- Rear Tyre
- 110/90-19
- Frame Type
- Cr-Mo steel Perimetral oval section
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc. Nissin pump and caliper
- Front Brakes
- Single
- disc.
- Nissin
- pump and
- Brembo
- caliper
- Rear Suspension
- Sachs Boge (optional Ohlins )
- Front Suspension
- D
- 50mm ( optional
- Ohlins
- 48mm )
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
