2005Classic

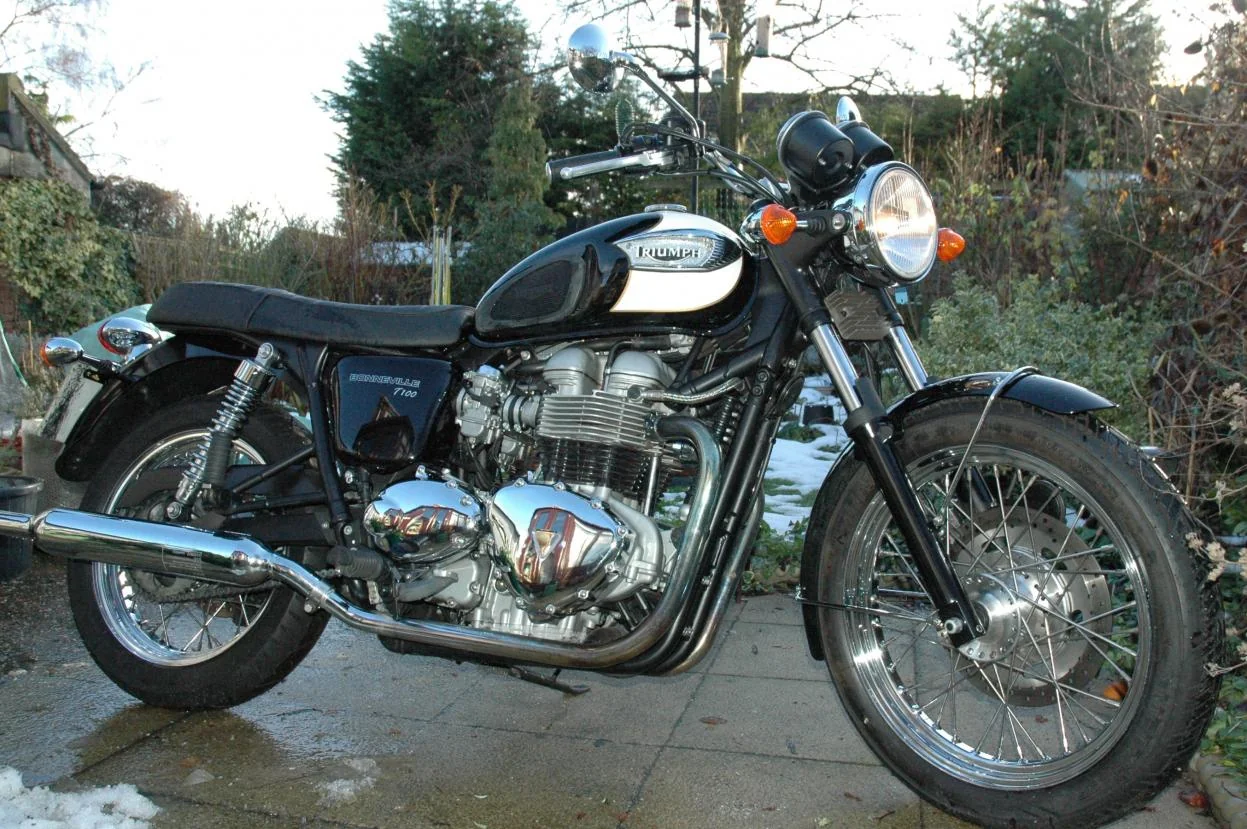

Triumph Bonneville T 100
Key specifications
Engine
865 cc
Power
64 HP
Torque
68 Nm
Weight
205 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. 2-piston calipers
Rear brakes
Single disc. 2-piston calipers
Technical details
Source specification data
- Make
- Triumph
- Model
- Bonneville T 100
- Category
- Classic
- Color Options
- Jet Black/White, White/Tangerine
- Power
- 64.00 HP (46.7 kW)) @ 7250 RPM
- Clutch
- Wet, Multi-plate
- Torque
- 68.00 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 60000 RPM
- Gearbox
- 5-speed
- Ignition
- Digital - inductive type
- Fuel System
- Carburettor
- .
- Twin
- carburettors with throttle position sensor and electric carburettor heaters
- Bore X Stroke
- 90.0 x 68.0 mm (3.5 x 2.7 inches)
- Compression
- 9.2:1
- Displacement
- 865.00 ccm (52.78 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 205.0 kg (451.9 pounds)
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.60 litres (4.39 gallons)
- Overall Width
- 840 mm (33.1 inches)
- Overall Length
- 2,230 mm (87.8 inches)
- Power Weight Ratio
- 0.3122 HP/kg
- Rake
- 28.0°
- Rear Tyre
- 130/80-17
- Frame Type
- Tubular steel cradle
- Front Tyre
- 100/90-19
- Rear Brakes
- Single disc. 2-piston calipers
- Front Brakes
- Single disc. 2-piston calipers
- Rear Suspension
- Chromed spring twin shocks with adjustable preloads
- Front Suspension
- 41mm forks
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Jet Black/WhiteWhite/Tangerine
