2003Allround

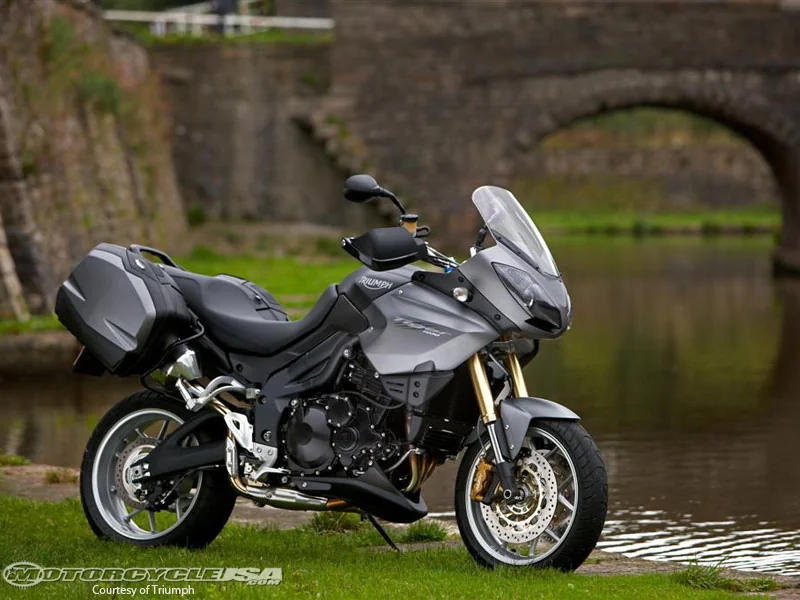

Triumph Tiger
Key specifications
Engine
955 cc
Power
105 HP
Torque
92 Nm
Weight
215 kg
Fuel type
petrol
Fuel capacity
6.3 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Triumph
- Model
- Tiger
- Category
- Enduro-offroad
- Power
- 105.00 HP (76.6 kW)) @ 9500 RPM
- Torque
- 92.00 Nm (9.4 kgf-m or 67.9 ft.lbs) @ 4400 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 65.0 mm (3.1 x 2.6 inches)
- Compression
- 11.7:1
- Displacement
- 955.00 ccm (58.27 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 215.0 kg (474.0 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 24.00 litres (6.34 gallons)
- Overall Width
- 860 mm (33.9 inches)
- Overall Height
- 1,370 mm (53.9 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Power Weight Ratio
- 0.4884 HP/kg
- Alternate Seat Height
- 860 mm (33.9 inches) If adjustable, highest setting.
- Rear Tyre
- 150/70-H 17
- Front Tyre
- 110/80-H 19
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Brakes Diameter
- 285 mm (11.2 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
