2011Sportbike

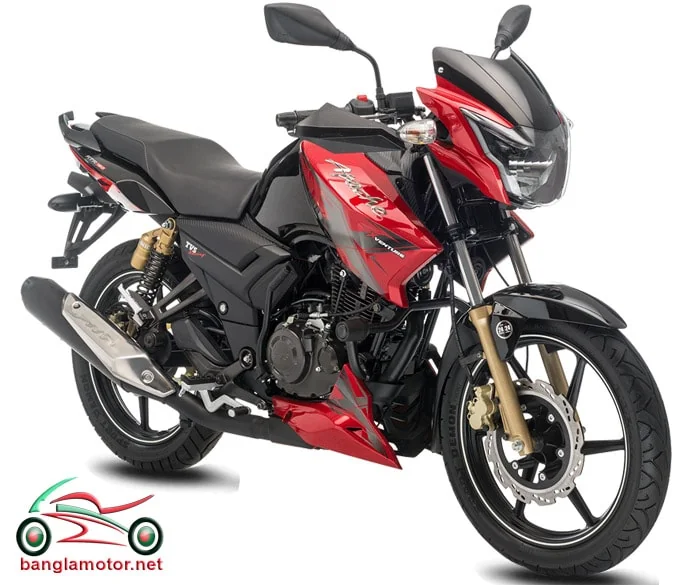

TVS Apache 150
Key specifications
Engine
148 cc
Power
13 HP
Torque
12 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Apache 150
- Category
- Sport
- Light
- 35/35W Halogen HS1, Clear lens with MFR
- Starter
- Electric & kick
- Comments
- Made in India.
- Color Options
- Red
- Power
- 13.34 HP (9.7 kW)) @ 8500 RPM
- Clutch
- Wet, multiplate
- Torque
- 12.30 Nm (1.3 kgf-m or 9.1 ft.lbs) @ 6000 RPM
- Ignition
- IDI-Dual mode digital ignition
- Driveline
- 5 speed constant mesh
- Fuel System
- Carburettor. Mikuni BS29
- Bore X Stroke
- 57.0 x 57.8 mm (2.2 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 147.50 ccm (9.00 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Length
- 2,085 mm (82.1 inches)
- Reserve Fuel Capacity
- 1.60 litres (0.42 gallons)
- Weight Incl Oil Gas Etc
- 136.0 kg (299.8 pounds)
- Wheels
- 6-spoke black alloy wheels
- Rear Tyre
- 100/80-18
- Frame Type
- Double cradle
- Front Tyre
- 90/90-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Monotube inverted Gas filled Shox
- Front Suspension
- Telescopic fork
- Front Wheel Travel
- 105 mm (4.1 inches)
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Red
