Back to Bike FinderYears: 2023 · 2022
2022Scooter

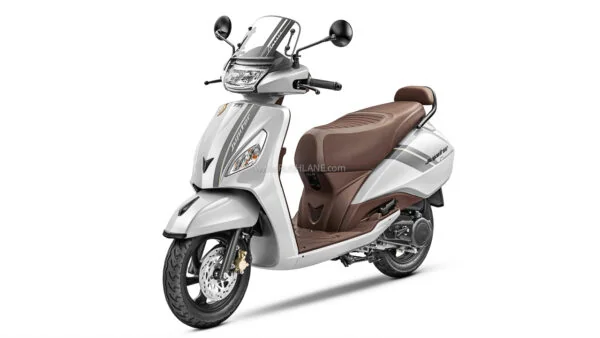

TVS Jupiter
Key specifications
Engine
110 cc
Power
8 HP
Torque
9 Nm
Fuel type
petrol
Fuel capacity
1.3 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Jupiter
- Category
- Scooter
- Light
- LED headlight
- Starter
- Electric & kick
- Comments
- Made in India.
- Electrical
- 12V,5Ah battery.
- Color Options
- Blue, black, white, grey, red, brown
- Power
- 8.0 HP (5.8 kW)) @ 7500 RPM
- Clutch
- CVT automatic
- Torque
- 8.8 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- ECU
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection. ETFi
- Bore X Stroke
- 53.5 x 48.8 mm (2.1 x 1.9 inches)
- Compression
- 9.9:1
- Displacement
- 109.7 ccm (6.69 cubic inches)
- Cooling System
- Air
- Emission Details
- BS-VI Compliant
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 765 mm (30.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.00 litres (1.32 US gallons)
- Overall Width
- 650 mm (25.6 inches)
- Overall Height
- 1115 mm (43.9 inches)
- Overall Length
- 1834 mm (72.2 inches)
- Ground Clearance
- 163 mm (6.4 inches)
- Weight Incl Oil Gas Etc
- 107.0 kg (235.9 pounds)
- Wheels
- Alloy rims
- Rear Tyre
- 90/90-12
- Frame Type
- Underbone
- Front Tyre
- 90/90-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- 3 step adjustable type coil spring with hydraulic damper
- Front Suspension
- Telescopic Hydraulic
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 130 mm (5.1 inches)
Available colors
Blueblackwhitegreyredbrown
