2017Classic

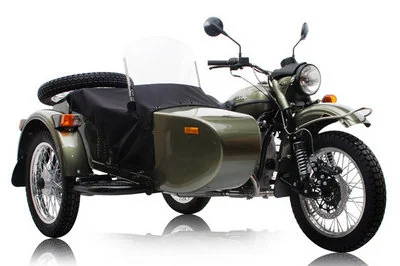

Ural Patrol
$16,499
Key specifications
Engine
749 cc
Power
41 HP
Torque
57 Nm
Weight
335 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
4-speed
Seat height
32 mm
Front brakes
Single disc. Brembo, floating disk
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Ural
- Model
- Patrol
- Price
- S
- $ 16499.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric & kick
- Comments
- Engageable
- sidecar wheel drive.
- Made
- by
- Irbit Motorcycle Works (IMZ)
- ,
- Irbit
- , 250 km east of the
- Ural
- mountains in
- Siberia
- ,
- Russia
- .
- Electrical
- 12 V 20 Ah battery
- Color Options
- Green metallic, grey metallic, burgundy metallic, sahara, camo, custom colors
- Factory Warranty
- 24 months
- Carrying Capacity
- Trunk Volume of 2.9 cubic ft
- Power
- 41.00 HP (29.9 kW)) @ 5500 RPM
- Clutch
- Dry, dual disk
- Torque
- 56.95 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 4300 RPM
- Gearbox
- 4-speed
- Ignition
- C.D.I.
- Top Speed
- 120.7 km/h (75.0 mph)
- Driveline
- D
- /3
- D
- , engageable sidecar drive shaft.
- On Demand
- 2
- D
- .
- Engine Type
- Flat twin engine
- Fuel System
- Injection. Throttle body EFI
- Bore X Stroke
- 78.0 x 78.0 mm (3.1 x 3.1 inches)
- Compression
- 8.6:1
- Displacement
- 749.00 ccm (45.70 cubic inches)
- Cooling System
- Air
- Engine Details
- Two cylinder boxer, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 335.0 kg (738.5 pounds)
- Seat Height
- 813 mm (32.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 19.00 litres (5.02 gallons)
- Overall Width
- 1,700 mm (66.9 inches)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 2,580 mm (101.6 inches)
- Ground Clearance
- 125 mm (4.9 inches)
- Power Weight Ratio
- 0.1224 HP/kg
- Wheels
- Aluminum
- rims with steel spokes.
- F
- -308 tires.
- Rear Tyre
- 4.00-19
- Frame Type
- Double loop steel tube
- Front Tyre
- 4.00-19
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. Brembo, floating disk
- Rear Suspension
- Double
- sided swing-arm with two
- Sachs
- hydraulic spring shock absorbers, 5x adjustable
- Front Suspension
- IMZ leading link fork
- Rear Brakes Diameter
- 265 mm (10.4 inches)
- Front Brakes Diameter
- 295 mm (11.6 inches)
Available colors
Green metallicgrey metallicburgundy metallicsaharacamocustom colors
