2006Cruiser

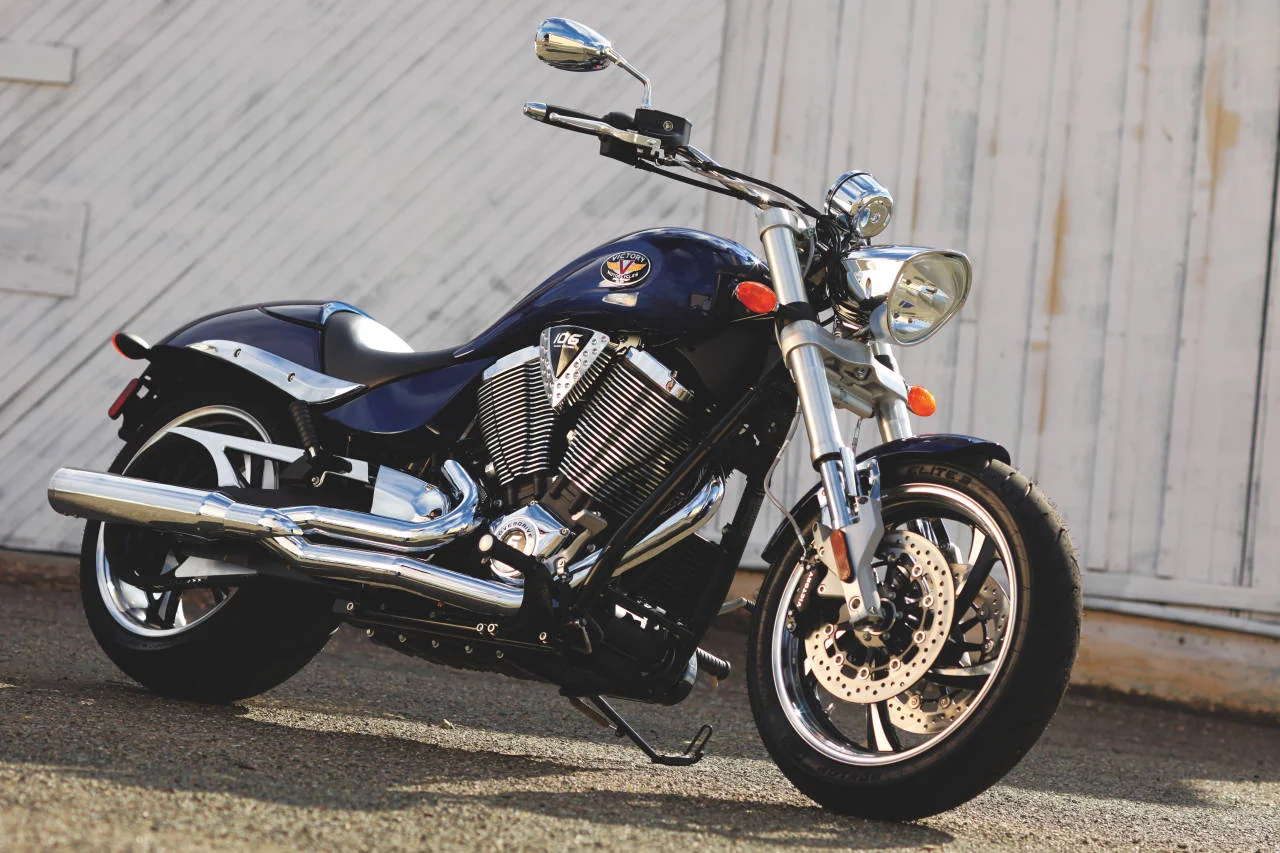

Victory Hammer
Key specifications
Engine
1639 cc
Weight
298 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Victory
- Model
- Hammer
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Black, Indy Red, Supersonic Blue
- Clutch
- Wet, Multi-plate
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Electronic Fuel Injection
- with 44mm throttle bodies
- Bore X Stroke
- 101.0 x 102.0 mm (4.0 x 4.0 inches)
- Compression
- 9.8:1
- Displacement
- 1638.81 ccm (100.00 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Staggered slash-cut dual exhaust with common volume
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 298.0 kg (657.0 pounds)
- Seat Height
- 671 mm (26.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Overall Length
- 2,355 mm (92.7 inches)
- Ground Clearance
- 147 mm (5.8 inches)
- Rake
- 32.9°
- Rear Tyre
- 250/40-18
- Front Tyre
- 130/70-R18
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 3.9in/100mm travel, preload adjustable spring
- Front Suspension
- Inverted cartridge telescopic fork, 43mm fork tube, 5.1in/130mm travel
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
BlackIndy RedSupersonic Blue
