2010Cruiser

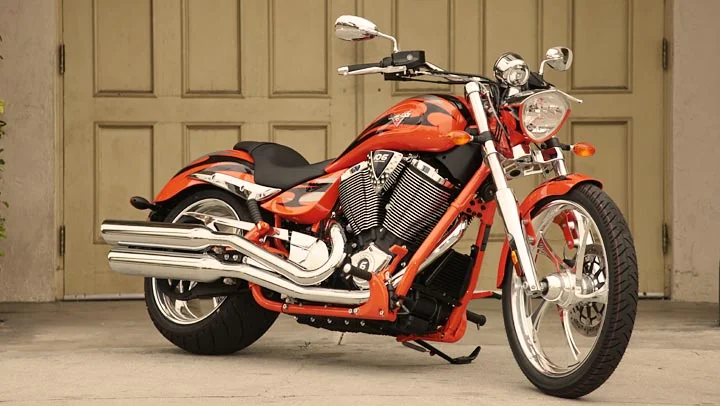

Victory Jackpot
Key specifications
Engine
1737 cc
Power
97 HP
Weight
296 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Victory
- Model
- Jackpot
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Solid Black
- ,
- Tequila Gold
- w/
- Power
- 97.00 HP (70.8 kW))
- Clutch
- Wet, Multi-plate
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Electronic Fuel Injection
- with dual 45mm throttle body
- Bore X Stroke
- 101.0 x 108.0 mm (4.0 x 4.3 inches)
- Compression
- 9.4:1
- Displacement
- 1737.14 ccm (106.00 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Staggered slash-cut dual exhaust with crossover
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 295.7 kg (652.0 pounds)
- Seat Height
- 653 mm (25.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 5.00 litres (0.33 quarts)
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Overall Length
- 2,436 mm (95.9 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Power Weight Ratio
- 0.3280 HP/kg
- Rake
- 32.9°
- Trail
- 125 mm (4.9 inches)
- Rear Tyre
- 250/40-R18
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Single, mono-tube gas, cast aluminum with rising-rate linkage, 3.0 in/76 mm travel, preload adjustable spring
- Front Suspension
- Conventional telescopic fork, 43 mm diameter, 5.1 in/130 mm travel
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Solid BlackTequila Gold w/Extreme Graphics
