2004Cruiser

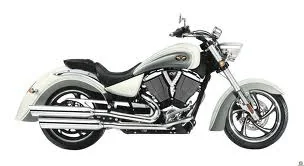

Victory Kingpin
Key specifications
Engine
1507 cc
Weight
290 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Victory
- Model
- Kingpin
- Category
- Custom-cruiser
- Gearbox
- 5-speed
- Fuel System
- Injection
- Bore X Stroke
- 97.0 x 102.0 mm (3.8 x 4.0 inches)
- Compression
- 9.2:1
- Displacement
- 1507.00 ccm (91.96 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 290.0 kg (639.3 pounds)
- Seat Height
- 673 mm (26.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Length
- 2,519 mm (99.2 inches)
- Ground Clearance
- 148 mm (5.8 inches)
- Rake
- 32.8°
- Trail
- 138 mm (5.4 inches)
- Rear Tyre
- 180/55-B18
- Front Tyre
- 130/70-18
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Wheel Travel
- 100 mm (3.9 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
