2018Off-road

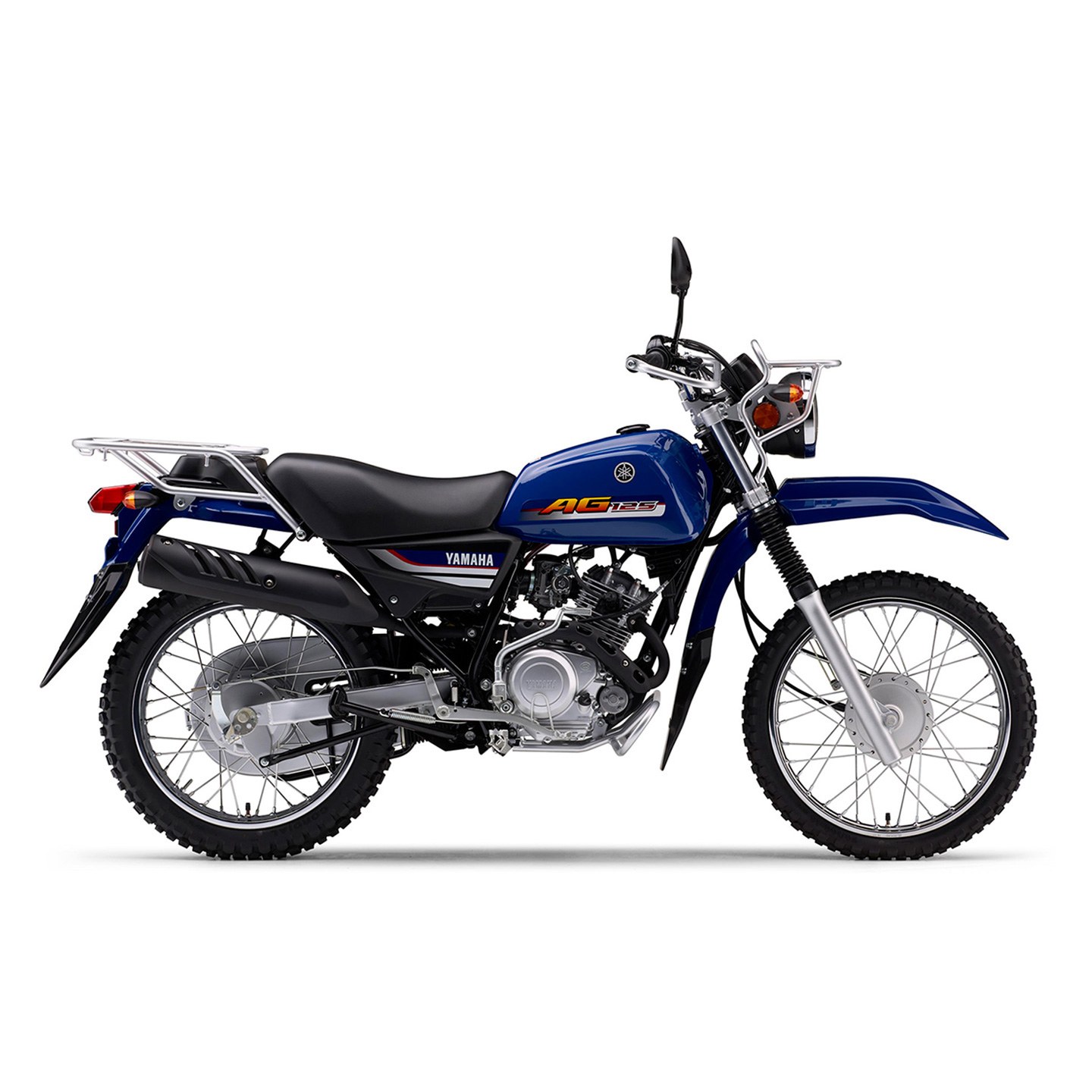

Yamaha AG125
Key specifications
Engine
124 cc
Fuel type
petrol
Fuel capacity
2.9 L
Seat height
32 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- AG125
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Australian farm bike
- Color Options
- Blue
- Ignition
- CDI
- Bore X Stroke
- 54.0 x 54.0 mm (2.1 x 2.1 inches)
- Compression
- 10.0:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 11.00 litres (2.91 gallons)
- Overall Width
- 940 mm (37.0 inches)
- Overall Height
- 1,095 mm (43.1 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Ground Clearance
- 225 mm (8.9 inches)
- Weight Incl Oil Gas Etc
- 113.0 kg (249.1 pounds)
- Rear Tyre
- 3.50-18
- Frame Type
- Semi double cradle
- Front Tyre
- 3/19-4
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Swingarm, 130mm travel
- Front Suspension
- Telescopic forks, 180mm travel
Available colors
Blue
