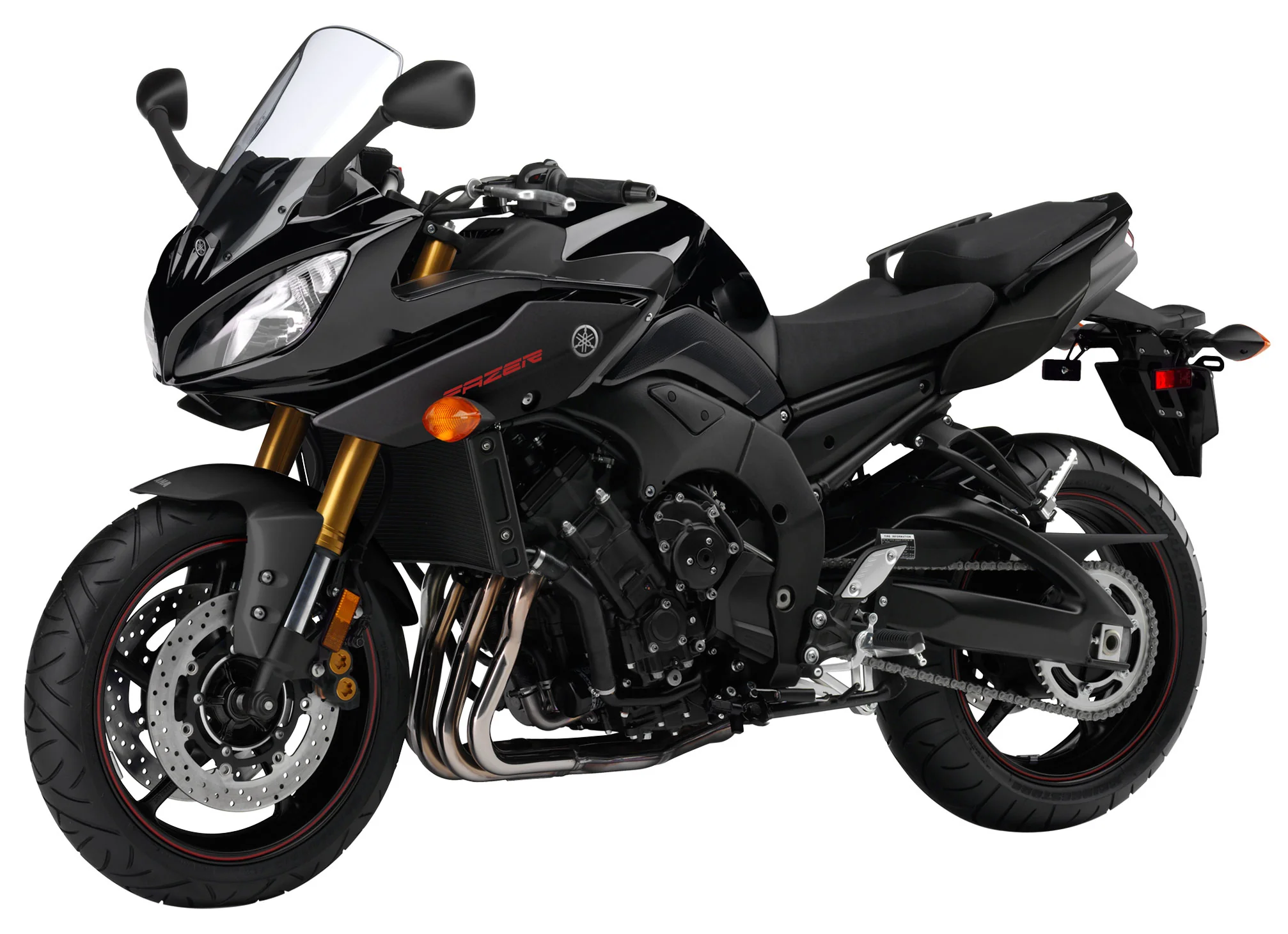

Yamaha Fazer 8
2013Sportbike

Yamaha Fazer 8

Key specifications

Engine
779 cc
Power
105 HP
Torque
82 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Hydraulic. Optional ABS.
Rear brakes
Single disc. Hydraulic. Optional ABS.

Technical details

Source specification data

Make
Yamaha
Model
Fazer 8
Category
Sport
Starter
Electric
Comments
ABS brakes ads 5 kg.
Color Options
Blue, grey, black, white
Modifications Compared To Previous Model
New
-for-2013 adjustable suspension.
Radical
new muffler design.
Power
104.73 HP (76.4 kW)) @ 10000 RPM
Clutch
Multiple-disc coil spring, Wet
Torque
82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 8000 RPM
Gearbox
6-speed
Ignition
Transistorized coil ignition
Fuel System
Injection. Electronic fuel injection
Bore X Stroke
68.0 x 53.6 mm (2.7 x 2.1 inches)
Compression
12.0:1
Displacement
779.00 ccm (47.53 cubic inches)
Cooling System
Liquid
Engine Details
In-line four, four-stroke
Lubrication System
Wet sump
Transmission Type Final Drive
Chain
Seat Height
815 mm (32.1 inches) If adjustable, lowest setting.
Oil Capacity
3.80 litres (0.25 quarts)
Fuel Capacity
17.00 litres (4.49 gallons)
Overall Width
770 mm (30.3 inches)
Overall Height
1,225 mm (48.2 inches)
Overall Length
2,140 mm (84.3 inches)
Ground Clearance
140 mm (5.5 inches)
Weight Incl Oil Gas Etc
215.0 kg (474.0 pounds)
Rake
25.0°
Trail
109 mm (4.3 inches)
Rear Tyre
180/55-ZR17
Frame Type
Black, powder-coated aluminium die-cast, diamond shaped
Front Tyre
120/70-ZR17
Rear Brakes
Single disc. Hydraulic. Optional ABS.
Front Brakes
Single disc. Hydraulic. Optional ABS.
Rear Suspension
Linked monoshock with spring preload adjustment
Front Suspension
Upside-down telescopic fork, Ø 43 mm inner tube
Rear Wheel Travel
130 mm (5.1 inches)
Front Wheel Travel
130 mm (5.1 inches)
Rear Brakes Diameter
267 mm (10.5 inches)
Front Brakes Diameter
310 mm (12.2 inches)

Available colors

Bluegreyblackwhite
