2006Minibike

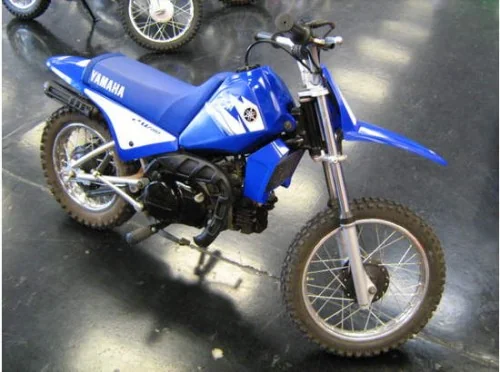

Yamaha PW 80
Key specifications
Engine
79 cc
Power
5 HP
Torque
6 Nm
Weight
57 kg
Fuel type
petrol
Fuel capacity
2.1 L
Transmission
5-speed
Seat height
25 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Yamaha
- Model
- PW 80
- Category
- Minibike-cross
- Starter
- Kick
- Power
- 4.69 HP (3.4 kW)) @ 5500 RPM
- Torque
- 6.30 Nm (0.6 kgf-m or 4.6 ft.lbs)
- Gearbox
- 5-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 47.0 x 45.8 mm (1.9 x 1.8 inches)
- Compression
- 6.6:1
- Displacement
- 79.00 ccm (4.82 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 57.0 kg (125.7 pounds)
- Seat Height
- 635 mm (25.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 8.00 litres (2.11 gallons)
- Overall Width
- 640 mm (25.2 inches)
- Overall Height
- 880 mm (34.6 inches)
- Overall Length
- 1,540 mm (60.6 inches)
- Ground Clearance
- 185 mm (7.3 inches)
- Power Weight Ratio
- 0.0823 HP/kg
- Rear Tyre
- 90/90-M14
- Front Tyre
- 70/90-M17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Monocross
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 125 mm (4.9 inches)
- Front Wheel Travel
- 110 mm (4.3 inches)
